LISHG FLAGSHIP · MASTER SERIES 6 COLOR

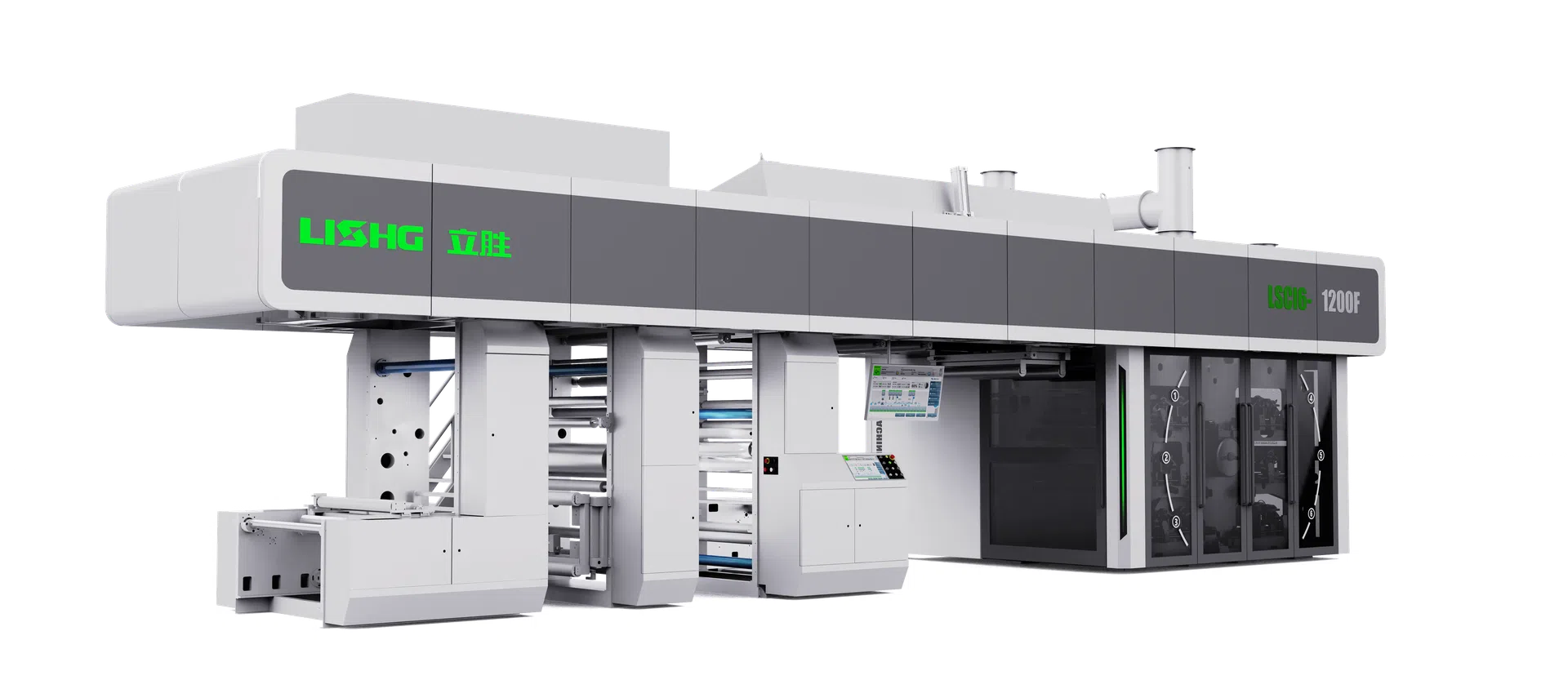

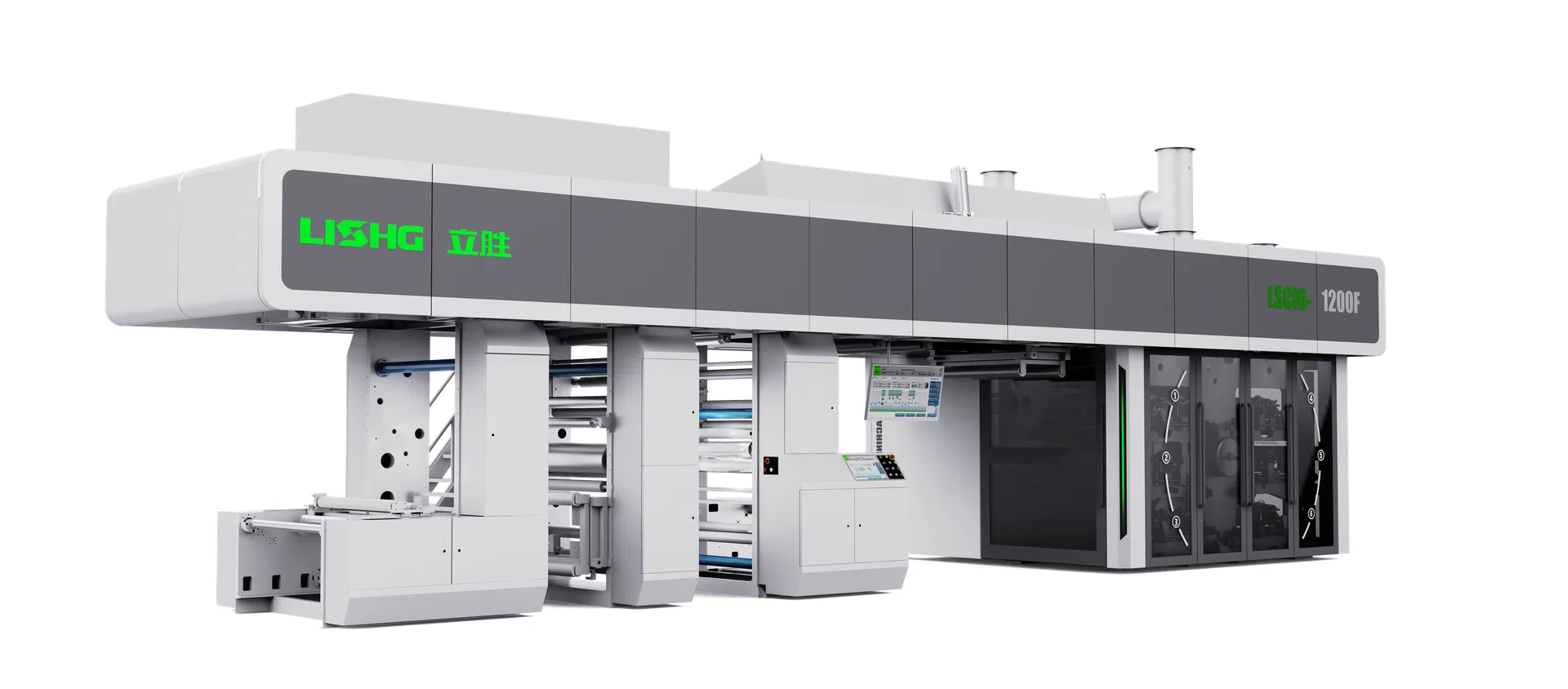

Master Series 6 Color Full Servo Gearless CI Flexographic Printing Machine for Flexible Packaging
Introduction
LISHG Master Series 6 Color Full Servo Gearless CI Flexographic Printing Machine delivers the same flagship Master platform—full servo gearless drive, ±0.08 mm register and 500 m/min mechanical class—in a production-optimized six-station configuration for high-speed flexible packaging.
Built for converters who need Master Series performance on BOPP, PET, PE, CPP and laminated films, the 6 Color configuration focuses stations on the job mix most continuous film lines run: process color plus white, spot or varnish.
QuoteFactory-direct pricing for this Master 6 Film configurationRecommendGet a production-fit suggestionSpecsDownload technical catalog PDF
Definition
Master Series 6 Color is a production-optimized configuration of LISHG's flagship CI flexographic platform—identical full servo gearless architecture, speed class and register precision as Master 8 Color, specified for high-speed flexible packaging jobs that run process color plus white, spot or varnish on PE, PET, BOPP, CPP and laminated films.
Ideal For
Buyer Match
Quick fit check — who should specify the 6 Color Master configuration for flexible packaging.
• High-speed flexible packaging converters
• Food / snack / household / daily chemical film printers
• Plants that need Master flagship performance with focused 6-station capability
• Laminated film & plastic label lines on continuous multi-shift runs
6 Color vs 8 Color — Quick Select
Choose 6 Color (this page)
Same Master flagship platform—production-optimized stations for process + white/spot/varnish at 400–450 m/min class output.
Choose 8 Color
Same Master flagship platform—maximum color capability for multi-spot / complex graphics and highest station flexibility.
Production Scope
6 Color CI · Flexible Packaging
500 m/min
Maximum Mechanical Speed
Printing speed: 400–450 m/min
±0.08 mm
Register Accuracy
Steady-state automatic register
6 Colors
This Page Configuration
CMYK + white/spot/varnish · Also: 4 / 8 + Customized
Full Servo
Gearless Drive
Bosch Rexroth closed-loop
Printing Width
600–1600 mm
Main Applications
Flexible Packaging
Applicable Films
BOPP · PET · PE · CPP · Laminated Films
Machine Architecture
Master Series 6 Color for flexible packaging is a Central Impression (CI) gearless flexographic printing machine—built for continuous high-speed film converting with six color stations, not stack-type production.
Machine Type
Central Impression (CI) Gearless Flexographic Printing Machine
Drive System
Full Servo Gearless Direct Drive
Printing Structure

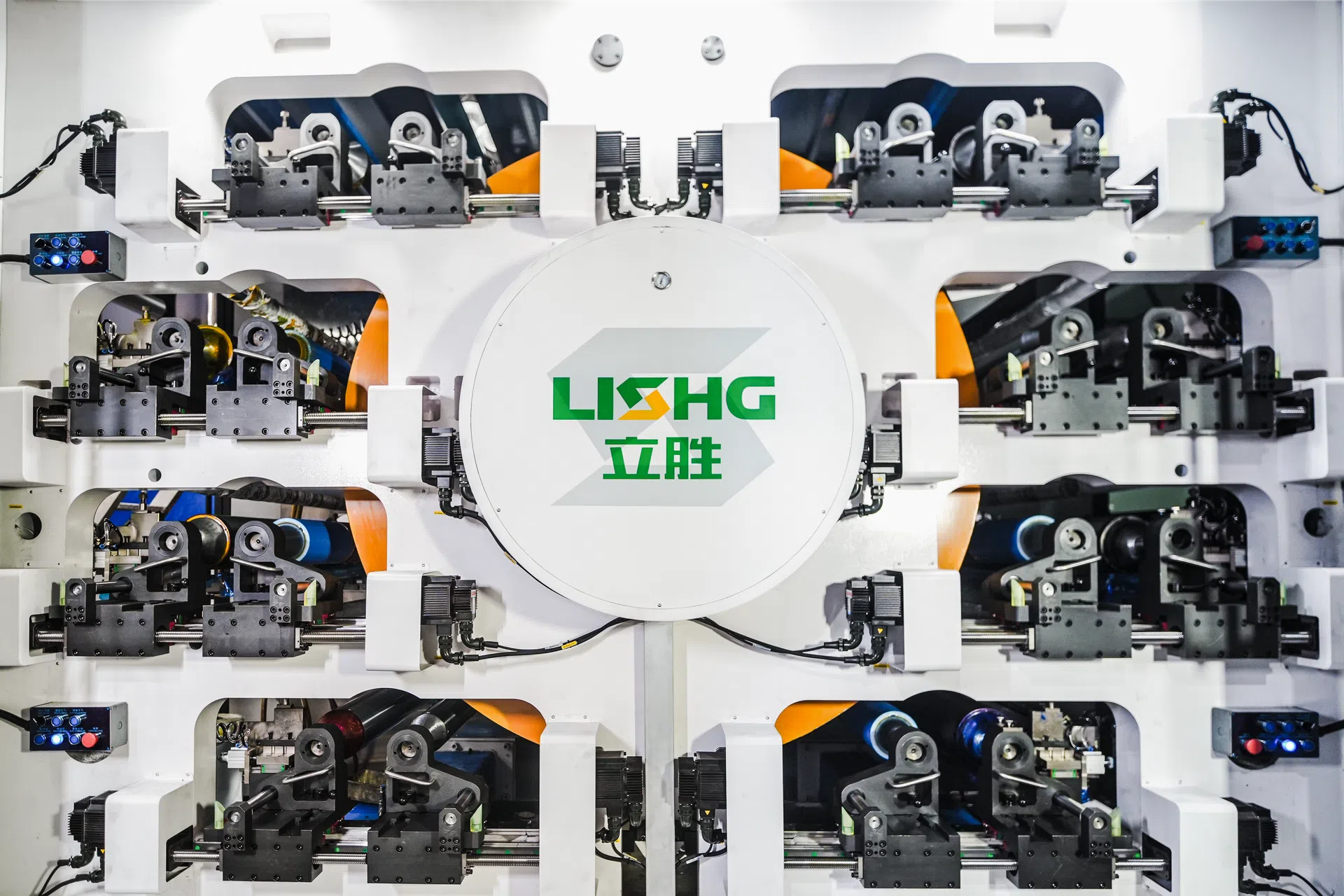

Central Impression Drum with Independent Servo Printing Units
Core Engineering Advantages
Flagship Platform · Production-Optimized Config
Identical Master Series engineering DNA—gearless servo, precision register and high-speed film architecture—configured for focused six-station production capability.
01
Full Servo Gearless Direct Drive
Independent servo units replace mechanical gear transmission—eliminating backlash and stabilizing register at Master Series film speed.
02
Automatic Register Control
Closed-loop vision correction holds ±0.08 mm accuracy for stable, high-consistency output through continuous multi-shift film converting.
03

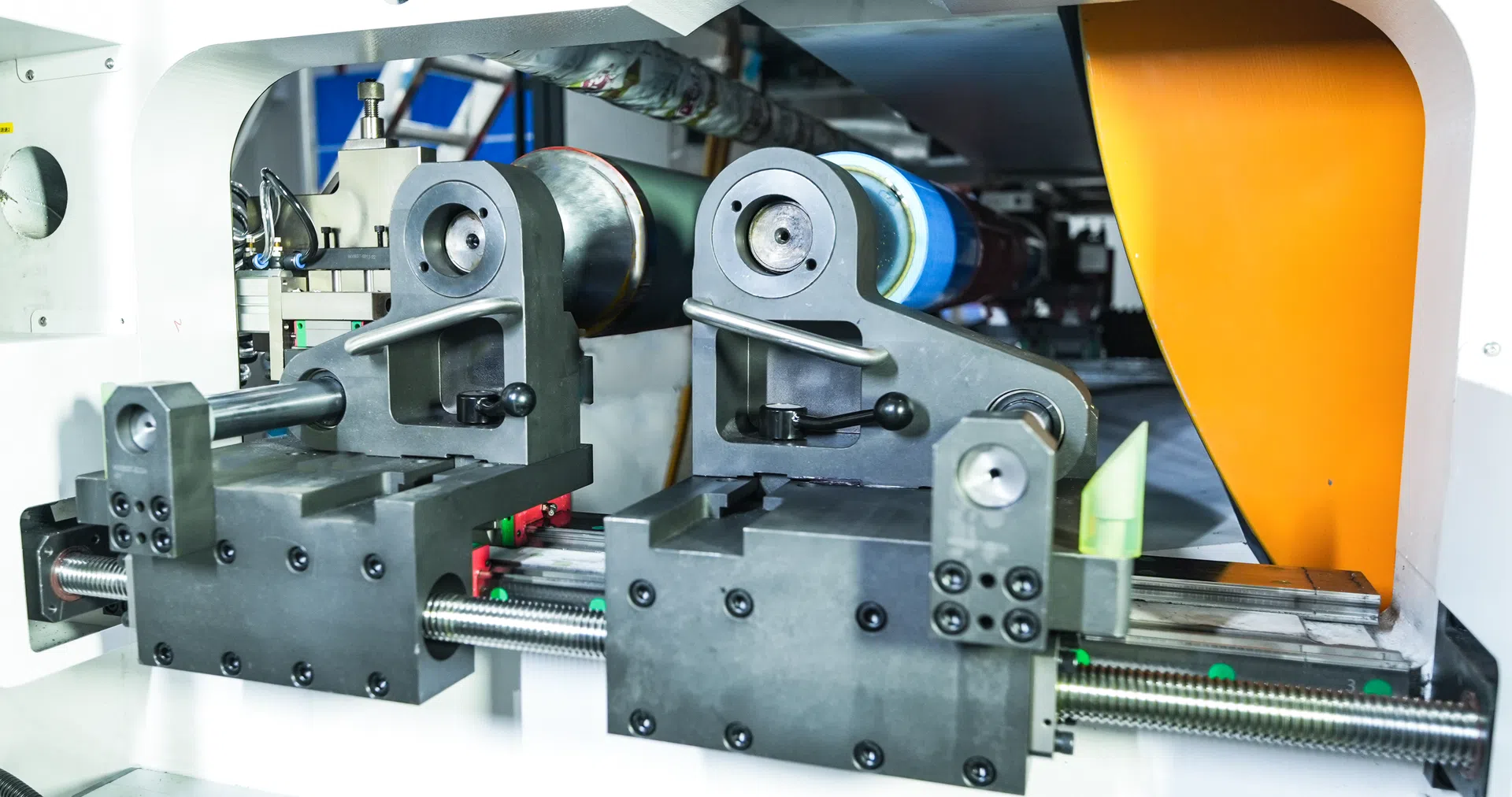

Sleeve-Type Quick Job Change
Sleeve architecture shortens plate and anilox changeover to keep high-speed flexible packaging lines productive across job switches.
04
High-Speed Flexible Packaging Production
Mechanical speed up to 500 m/min with recommended printing 400–450 m/min—six focused stations for high-speed film converting on the Master platform.
Film Handling
Flexible Packaging Focus
Unlike paper converting, flexible packaging performance is defined by thin-film tension stability. The Master 6 Color press is engineered for low-elongation film handling across PE, PET, BOPP, CPP and laminated webs in continuous converting.
01
Closed-loop tension control
Independent tension zones continuously correct stretch and speed change on thin films.
02
Low elongation film handling
Stable web path control reduces elongation-related register drift on PE and laminates.
03

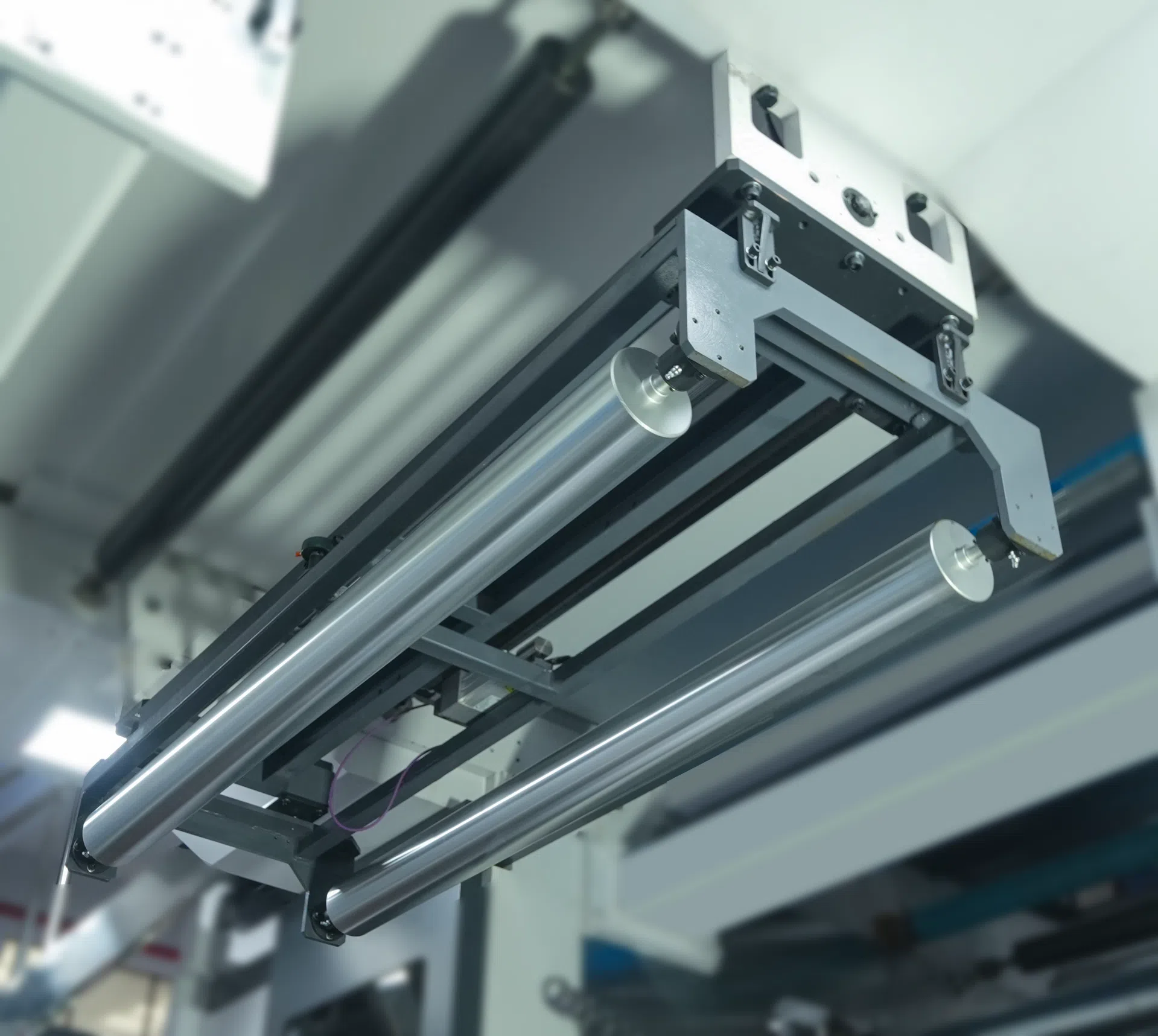

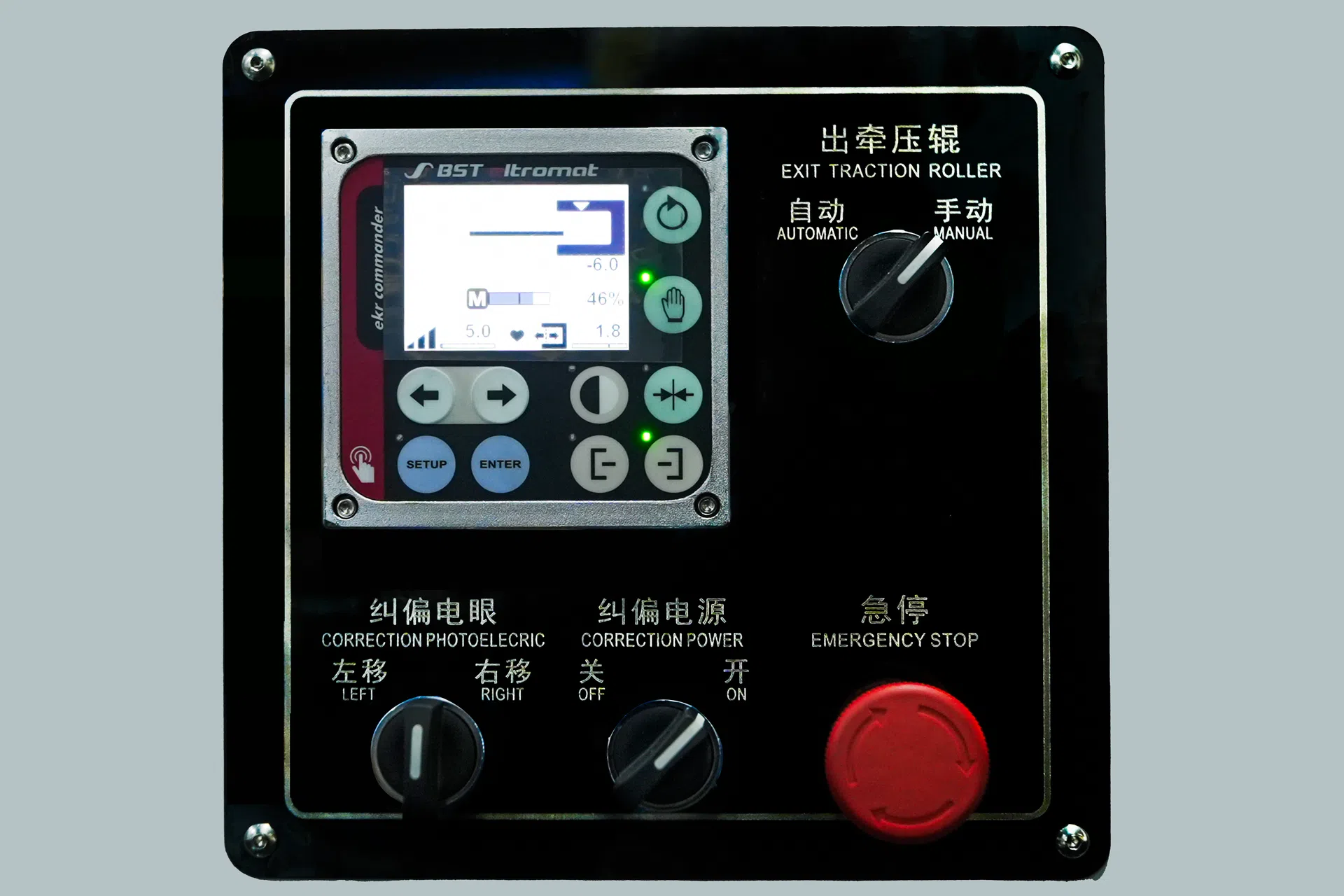

Edge guiding
Precise edge alignment keeps film tracking stable through high-speed multi-shift runs.
04
Corona treatment compatibility
Supports corona-treated film workflows for reliable ink wetting and adhesion on PE / BOPP / PET.
Applicable Films
Substrate Match
Master Series 6 Color for Flexible Packaging is specified for the same film substrate range as the Master platform—food, snack, household and laminated converting where six focused stations deliver full commercial print capability.
BOPP
Snack & confectionery
PET
Barrier & food packs
PE
Pouches & laminates
CPP
Sealant & pouch webs
Laminated Films
Multi-layer structures
Why Choose Master Series 6 Color
Flagship Performance · Focused Stations
Master Series 6 Color puts the same pinnacle gearless platform on the plant floor—specified when your job mix needs Master-class speed, register and film handling with a focused six-station configuration.
Same flagship platform. Different station focus: Choose 8 Color for maximum color capability and multi-spot complexity. Choose 6 Color when process + white/spot/varnish is the production reality—Master performance, production-optimized stations.
Why Buyers Specify 6 Color
01
Full servo gearless architecture
Same Master Series drive platform
02
Stable high-speed film production
Reliable continuous converting
03
±0.08 mm register control
Stable production consistency
04
Sleeve quick changeover
Shorter downtime between jobs
05
Flexible substrate compatibility
BOPP · PET · PE · CPP · Laminated
Production Benefits
What Master Series solves on the plant floor—mapped from technology to commercial outcome.
Technology
Production Benefit
Gearless servo drive
Higher register stability
Sleeve system
Shorter changeover / higher job efficiency
Closed-loop tension
Stable high-speed film production
Focused 6-color stations
Flagship performance matched to process + white/spot/varnish job mixes
Precision Engineering · Heavy-Duty Cast Structure
Built for High-Speed Flexible Packaging Production
Precision at mechanical speeds up to 500 m/min (printing 400–450 m/min) on film webs depends on vibration absorption. Master Series central impression frames are processed through monolithic gantry machining centers to control micro-deflection under continuous film converting loads.
Mazak 5-Axis Machining Center
Central cylinder slides and core mounting frameworks are precision-milled in a single-stage clamping setup. Guaranteed concentricity (TIR) ≤ 0.008 mm.
Heavy-Duty Gantry Milling
Processes premium monolithic cast-iron wallboards (up to 120 mm thickness). Reduces structural micro-vibrations at high film production speed.
Suggested Fit: Who Should Choose Master 6 Color for Flexible Packaging
Flexible packaging converters whose job mix is mostly process color plus white, spot or varnish—food films, snack packs, household and daily chemical packaging—running Master Series high-speed film production with a focused six-station configuration.
Production Mode
Multi-shift continuous converting
Order Type
Long-run high-volume jobs
Speed
400–450 m/min
Quality
Precision register on film
Applicable Films
BOPP · PET · PE · CPP · Laminated
What Master Solves
High-Speed Registration
Controls register and color-to-color deviation at 400–450 m/min on thin and laminated films.
Gear Drive Limits
Eliminates gear backlash, vibration and gear marking on long film runs.
Film Web Tension
Stabilizes film stretch, thickness variation and tension fluctuation.
Efficiency Loss
Reduces setup waste and downtime in continuous flexible packaging production.
Best fit when: CI stability for flexible packaging · continuous printing 400–450 m/min · register within ±0.08 mm · Master flagship performance with focused six-station capability.
Also consider: Sleeve quick-change / ~300 m/min → King. ~200 m/min CI entry → Ultra.
Why Master Improves Production ROI
6 Color CapEx for flexible packaging is evaluated on cost per printed meter—not lowest purchase price. Master is built to raise shift productivity and cut waste in continuous high-speed film converting.
01
Higher productivity per shift
02
Reduced setup waste on film webs
03
Lower material loss
04
Stable quality on long film runs
05
Less operator adjustment
Model Your Payback
Use the LISHG ROI Calculator to map CapEx, speed and waste reduction into an estimated payback for a 6 Color Master film line.
Flexible Packaging Applications
01 · Food Packaging Films
Stable tension for food film converting
Supports continuous BOPP, PET and PE food packaging films at production speed. Built for reliable solids and process color where web stretch and register must stay stable across long food-film runs.
02 · Snack & Household Packaging
Snack and household film packs
Covers snack films, detergent and household packs on BOPP, PET, PE and laminated structures—Master Series converting for continuous film production.
03 · Daily Chemical & Laminated Films
Daily chemical packs and laminated webs
Handles daily chemical packaging films, plastic labels and laminated structures with closed-loop tension and six-station coverage for process + white/spot/varnish jobs.
Film Handling
On the 6 Color Master configuration, closed-loop tension, low-elongation film handling, edge guiding and corona-ready workflows keep stable registration on BOPP, PET, PE, CPP and laminated films—Master-class coverage for food, snack, household and daily chemical converting with focused six-station capability.
01
Food Packaging Films
BOPP / PET / PE food film converting
02
Snack Packaging
Snack and confectionery film packs
03
Household Packaging
Detergent and household film packs
04
Daily Chemical Packaging
Daily chemical film and pouch packs
05
Labels
Plastic labels and laminated film webs
Flexible Packaging Application Matrix (μm)
Match substrate, speed, ink and anilox focus before process setup.
Typical Application
Applicable Film
Thickness
Recommended Speed
Ink System
Anilox Focus
Process Note
Snack Packaging
BOPP / PET / PE Laminated Films
12–120 μm
400–450 m/min
Water-based / solvent
400–600 LPI · solid + line
High-speed solids and line work on snack films
Household Packaging
PE / BOPP / Laminated Films
20–120 μm
400–450 m/min
Water-based / solvent
400–600 LPI · solids first
Detergent and household packs—volume over complex graphics
Food Packaging Films
BOPP / PET / PE Films
10–120 μm
400–450 m/min
Water-based / food-grade
500–700 LPI · light coverage
Thin-film stretch sensitive; prioritize closed-loop tension
Daily Chemical Packaging
PE / Laminated Films
30–150 μm
400–450 m/min
Water-based / solvent
400–600 LPI · solids first
Reliable solids coverage for daily chemical film packs
Laminated Films / Plastic Labels
PE / CPP / Composite Films
30–150 μm
400–450 m/min
Water-based / solvent
400–600 LPI · solids + line
Stable tension for laminates and plastic label film webs
Optional Modules
Extend automation, curing, inspection and service for film converting lines.
Automation

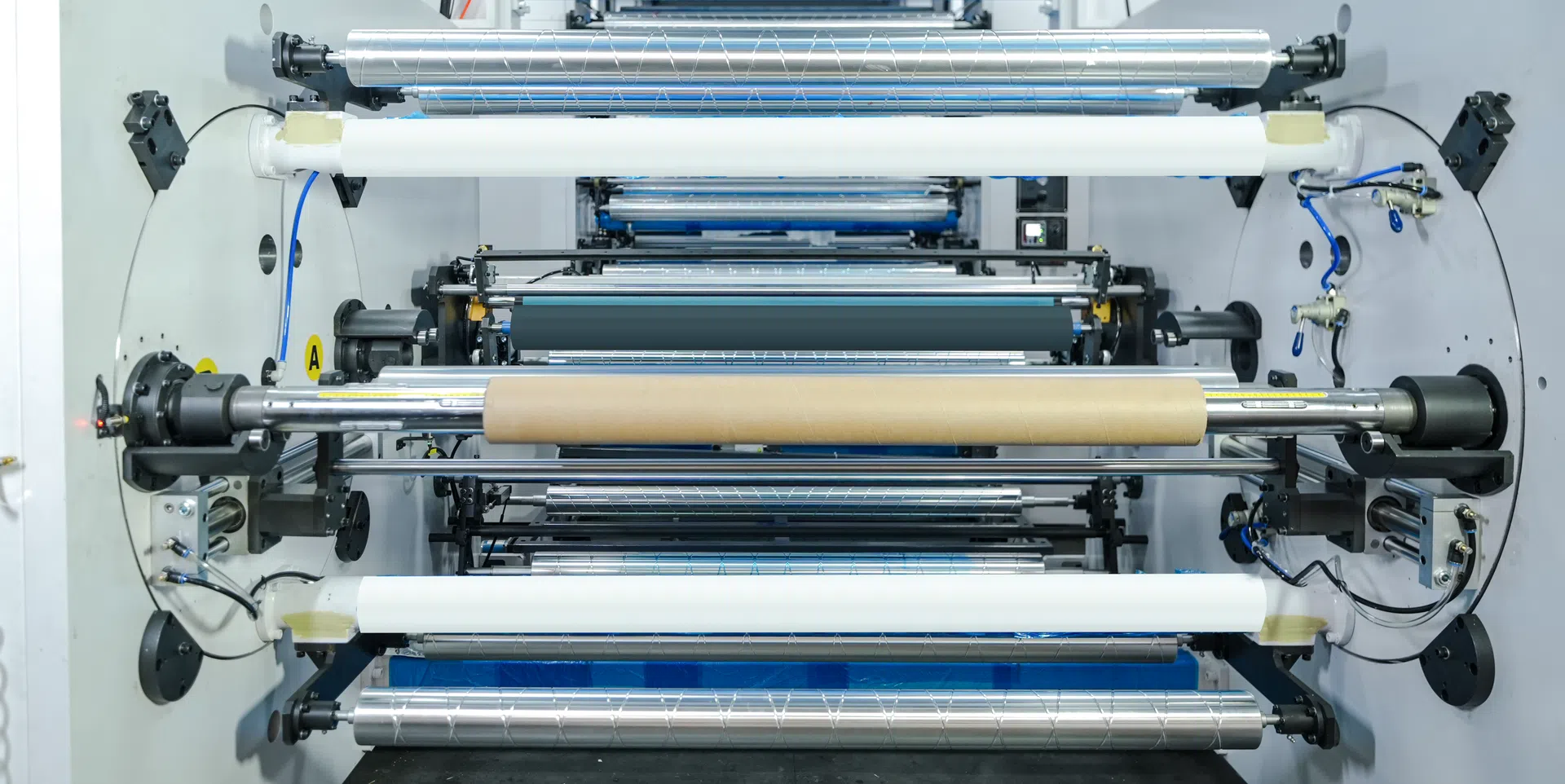

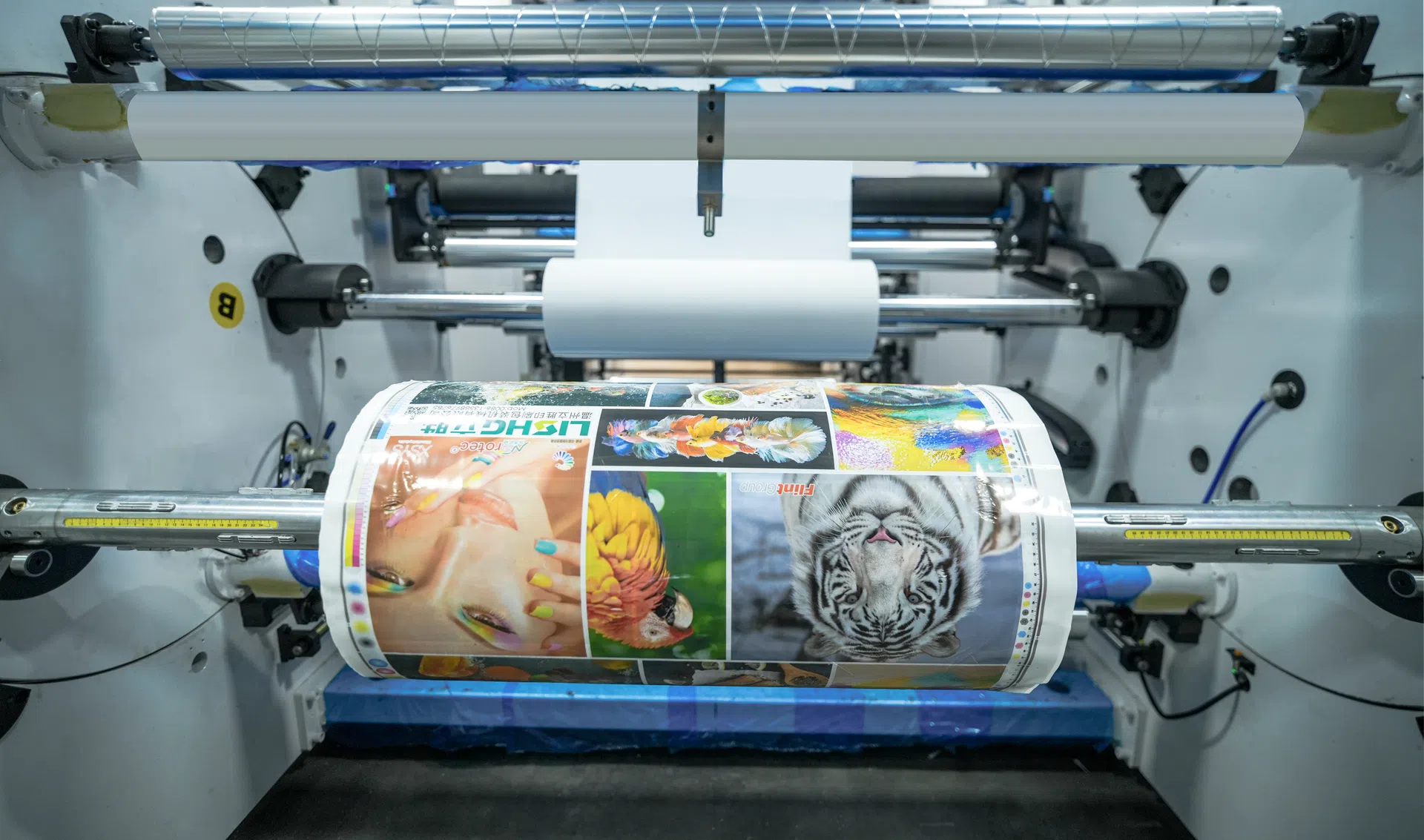

Non-stop automatic splice unwind/rewind
Changeover
Sleeve-type plate / anilox quick-change
Curing
UV curing / EB curing
Quality
Inline print inspection
Ink
Auto ink supply and circulation
Web
Static eliminator
Finishing
Trim rewind
Service
Remote diagnostics
Platform Comparison & Selection Guide
Compare LISHG Master with King and typical gear-drive CI alternatives for flexible packaging investment. Non-LISHG values are typical industry ranges for orientation—not claims against any named brand.
Master vs King vs Typical Gear-Drive CI
Dimension
LISHG Master
LISHG King
Typical Gear-Drive CI
Drive
Full servo gearless
Sleeve gear-driven + servo
Mechanical gear transmission
Max Speed
500 m/min
300 m/min
Often 150–250 m/min
Registration
±0.08 mm
±0.15 mm
Often ±0.15–0.20 mm
Best For
Master flagship · focused 6-station film converting
Multi-SKU / fast changeover
Budget continuous runs
Gear Marking Risk
Eliminated (gearless)
Managed (precision gear)
Higher at elevated speed
Investment Position
Flagship platform · production-optimized stations
Premium · flexibility focus
Lower CapEx entry
Which LISHG Flexo Platform Fits Your Production?
If you need X, choose Y—click through to shortlist before RFQ.
If you need 6 Color · 400–450 m/min print / 500 mech.
If you need multi-SKU flexible packaging
If you need long-run stable production
If you need Stack → CI upgrade
If you need high-quality Stack production
If you need frequent job change on Stack
If you need standard packaging production
Engineering Decision Support Tools
Use LISHG calculators to evaluate investment, capacity, ink and anilox before RFQ.
ROI
ROI Calculator
Map CapEx and running efficiency to estimate investment payback.
Capacity
Capacity Calculator
Calculate daily flexible packaging throughput by shift and speed.
Service & Delivery
Pre-sales
Film substrate sampling, line layout, capacity estimation
In-process
Factory pre-assembly and commissioning; full-speed film trial before shipment
After-sales
On-site installation & operator training; 1-year machine warranty; lifetime spare parts; 24h technical response
After-Sales Support
Global After-Sales & Warranty
Complete Commissioning
On-site installation, film-web tension profiling, and operator training by LISHG engineers.
Industry Guarantee
1-year machine warranty; lifetime spare parts support; 24h technical response for overseas markets.
Factory Direct Support
