LISHG FLAGSHIP · MASTER SERIES 4 COLOR FFS

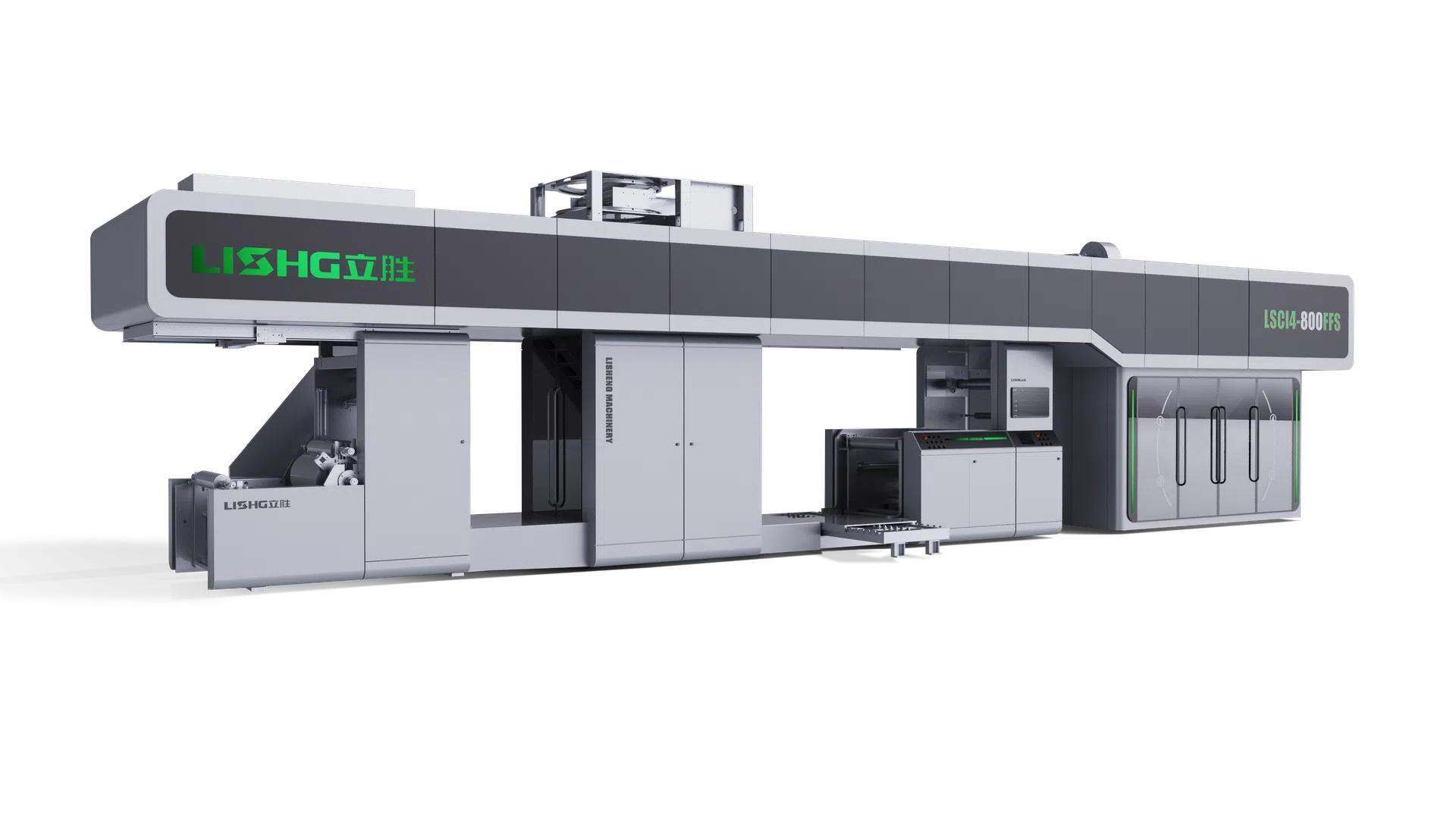

Master Series 4 Color Full Servo Gearless CI Flexographic Printing Machine for FFS Film Production
Introduction
LISHG Master Series 4 Color Full Servo Gearless CI Flexographic Printing Machine is specially developed for FFS (Form-Fill-Seal) film production and industrial packaging applications. Featuring full servo gearless direct drive technology, closed-loop register control and advanced tension management, it provides stable printing performance on PE, PP, BOPP and other flexible packaging films.
Designed for manufacturers producing automatic packaging bags, industrial packaging films and specialized FFS structures, this configuration focuses on consistent print quality, reliable film handling and efficient long-run production.
QuoteFactory-direct pricing for this Master 4 FFS configuration RecommendGet a production-fit suggestion SpecsDownload technical catalog PDF
Definition
Master Series 4 Color FFS is LISHG's dedicated FFS film production platform on the Master gearless CI architecture—not a general 4-color flexo press, but a specialized configuration for Form-Fill-Seal film, PE/PP industrial packaging film and bag-making applications.
Ideal For
Buyer Match
Quick fit check — who should specify the 4 Color FFS Master configuration.
• FFS film and industrial PE/PP packaging converters
• Automatic bag-making and form-fill-seal film producers
• Food, agricultural, chemical and heavy-duty industrial film plants
• Lines that need Master gearless CI with optional inline embossing
Master Matrix — Quick Select
Choose 4 Color FFS (this page)
Specialized industrial packaging film—FFS / PE / PP bag webs, tension-stable converting, optional inline embossing.
Choose 6 Color Film
Production-optimized flexible packaging—process + white/spot/varnish on the Master flagship film platform.
Choose 8 Color Film
Maximum color capability—premium / complex flexible packaging and highest station flexibility.
Production Scope
4 Color CI · FFS Film
150–200
Recommended Production
m/min · FFS-stable operating window
±0.08 mm
Register Accuracy
Steady-state automatic register
4 Colors
This Page Configuration
YTE-800 · specialized FFS platform
Full Servo
Gearless Drive
Master Series gearless architecture
Maximum Printing Width
760 mm
Max Mechanical Speed
420 m/min
Compatible Materials
FFS · PE · PP · BOPP · Flexible Films
Machine Architecture
Master Series 4 Color for FFS film is a Central Impression (CI) gearless flexographic printing machine—built for specialized form-fill-seal and industrial packaging film converting, not stack-type production.
Machine Type
Central Impression (CI) Gearless Flexographic Printing Machine
Drive System
Full Servo Gearless Direct Drive
Printing Structure
Central Impression Drum with Independent Servo Printing Units
Core Engineering Advantages
Specialized FFS Platform
Master Series engineering focused on FFS film stability, downstream bag-making compatibility and continuous industrial film converting.
01

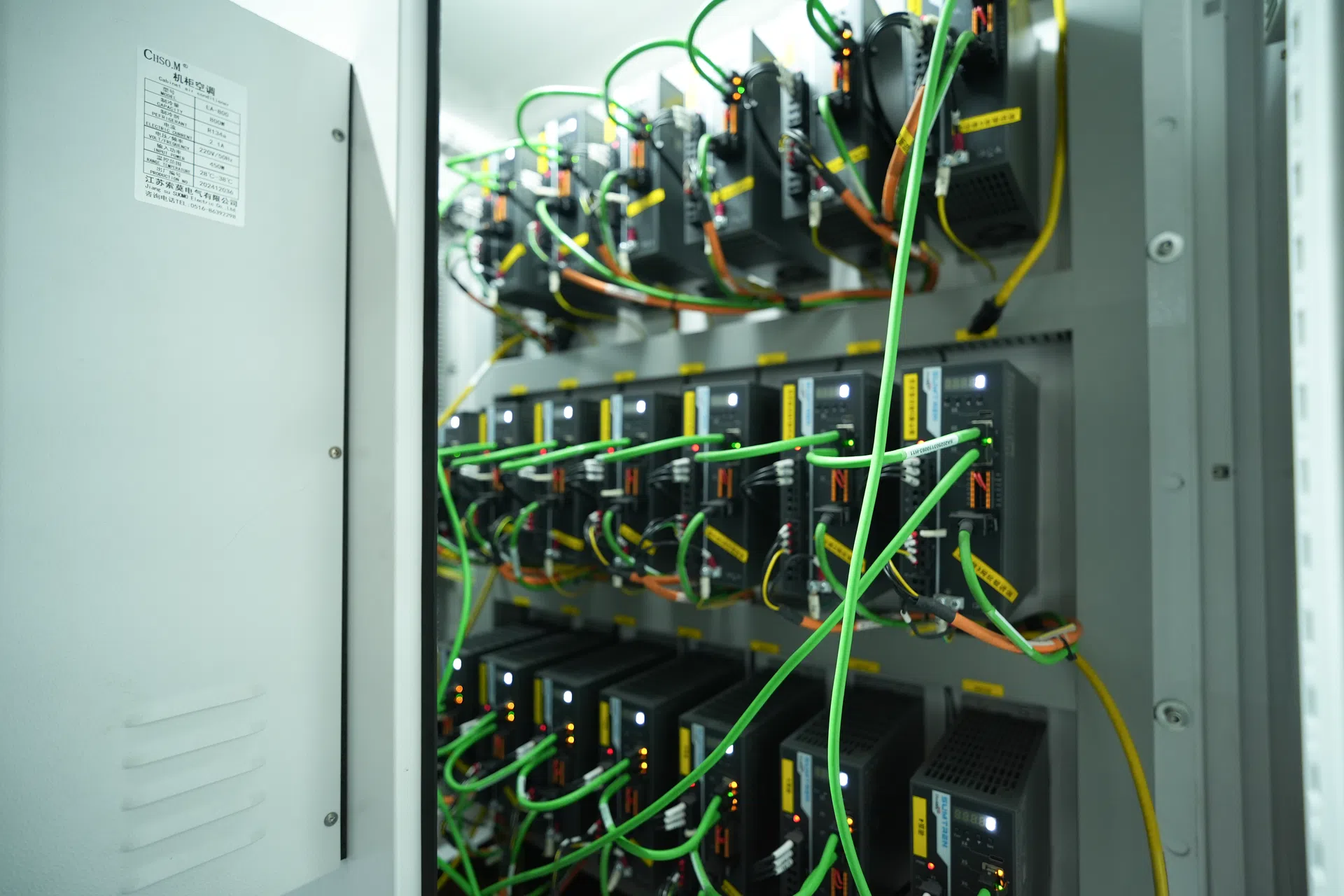

Full Servo Gearless Drive System
Direct gearless transmission with independent servo motors for each printing unit provides precise motion control, stable operation and reduced mechanical wear for continuous FFS film production.
02
Stable Film Tension Management
Advanced closed-loop tension control maintains consistent film transport performance, helping reduce stretching and registration variation during FFS film printing.
03

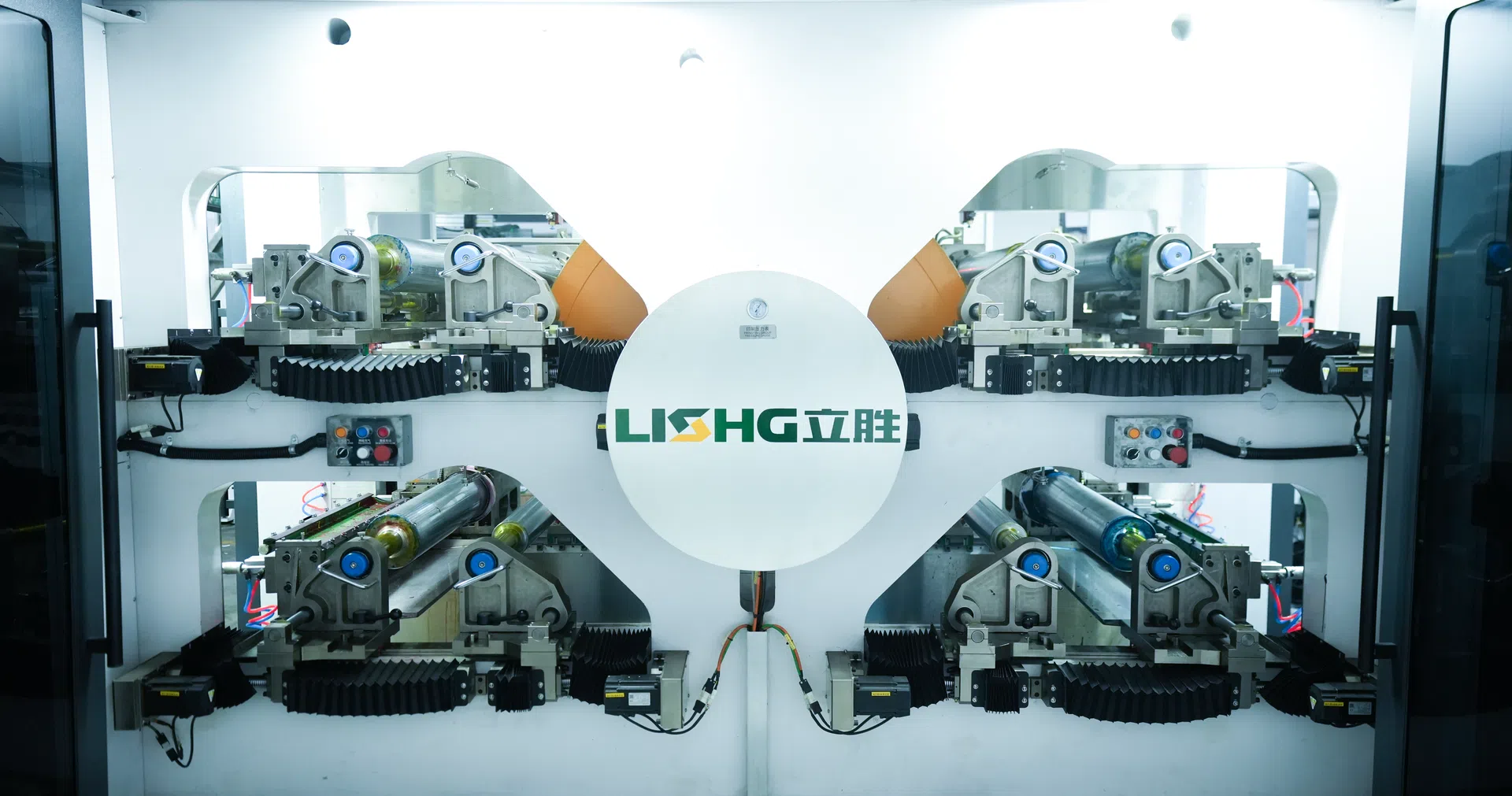

Sleeve-Type Quick Change System
Sleeve plate cylinder and ceramic anilox roller technology enable faster job preparation, easier changeover and improved production flexibility for multiple packaging film designs.
04
Inline Embossing & Edge Processing Integration
Optional inline embossing and edge processing functions support specialized FFS film requirements, enabling combined printing and film finishing within one production line.
Film Handling
FFS Film Focus
FFS film performance depends on stable material handling and controlled tension for downstream bag-making. The Master 4 Color FFS press is engineered for PE, PP, BOPP and specialized FFS structures in continuous industrial converting.
01
Closed-loop tension control
Independent tension zones continuously correct stretch and speed change on FFS and PE/PP films.
02
Low elongation film handling
Stable web path control reduces elongation-related register drift on PE, PP and FFS webs.
03

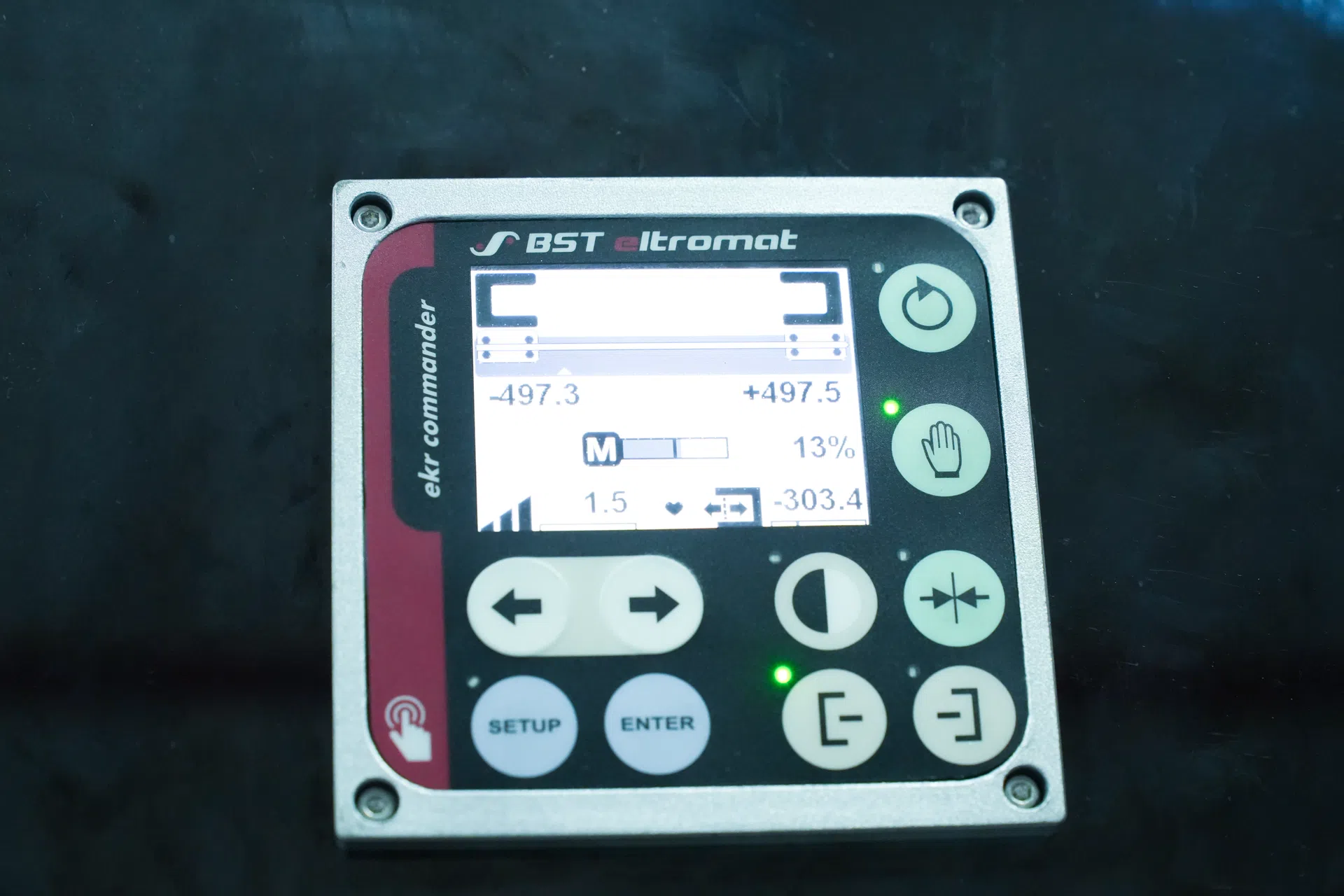

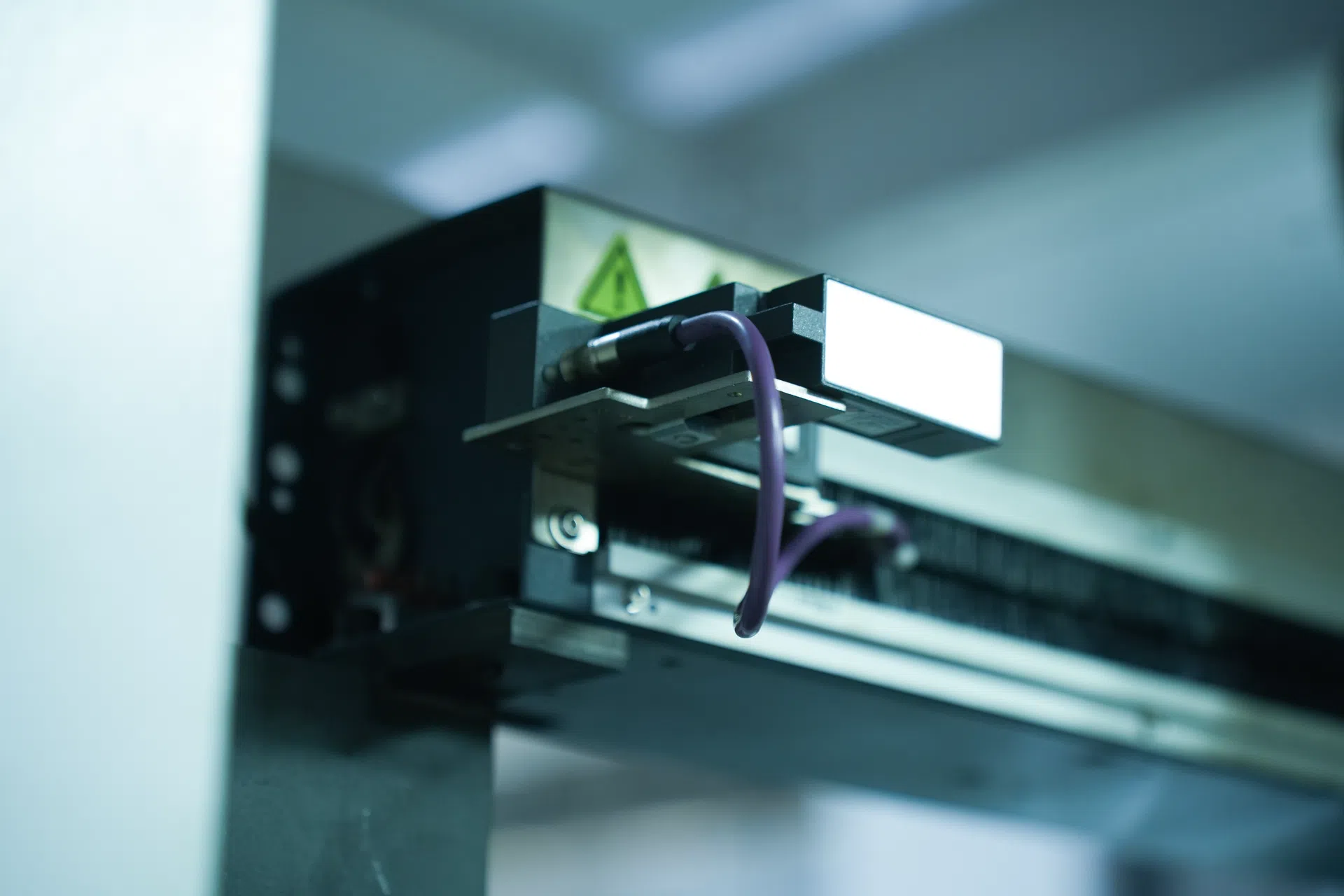

Edge guiding
Precise edge alignment keeps FFS film tracking stable through continuous production runs.
04
Corona treatment compatibility
Supports corona-treated film workflows for reliable ink wetting and adhesion on PE / PP / BOPP.
Compatible Materials
FFS · Industrial Films
Master Series 4 Color FFS is specified for form-fill-seal and industrial packaging film webs—PE, PP, BOPP and related flexible structures used in automatic bag-making applications.
FFS Film
Form-fill-seal webs
PE Film
Industrial & bag films
PP Film
Packaging film webs
BOPP Film
Oriented PP converting
Heavy-Duty Film
Industrial thick-gauge webs
Why Choose Master Series 4 Color FFS
Specialized · Not General Film
Master Series 4 Color FFS is engineered for converters requiring reliable and specialized film printing performance for automatic packaging applications.
Unlike general flexible packaging presses: this configuration focuses on FFS film stability, downstream bag-making compatibility and production performance for industrial PE/PP packaging films.
Key Advantages
01
Full servo gearless architecture
Master Series drive platform
02
Stable FFS film tension control
Reduced stretch & register drift
03
±0.08 mm register accuracy
Closed-loop production consistency
04
150–200 m/min production window
Optimized for FFS film stability
05
Optional inline embossing
PE · PP · FFS film compatibility
Production Benefits
What Master Series solves on the plant floor—mapped from technology to commercial outcome.
Precision Engineering · Heavy-Duty Cast Structure
Built for Specialized FFS Film Production
Precision on FFS and industrial PE/PP film webs depends on vibration absorption and stable web path control. Master Series central impression frames are processed through monolithic gantry machining centers to control micro-deflection under continuous FFS converting loads.
Mazak 5-Axis Machining Center
Central cylinder slides and core mounting frameworks are precision-milled in a single-stage clamping setup. Guaranteed concentricity (TIR) ≤ 0.008 mm.
Heavy-Duty Gantry Milling
Processes premium monolithic cast-iron wallboards (up to 120 mm thickness). Reduces structural micro-vibrations at high film production speed.
Suggested Fit: Who Should Choose Master 4 Color for FFS Film
Converters producing FFS film, automatic bag-making webs and industrial PE/PP packaging films—food, agricultural, chemical and heavy-duty applications—who need Master gearless CI with FFS-stable tension and optional inline embossing.
Production Mode
Multi-shift continuous converting
Order Type
Long-run high-volume jobs
Speed
150–200 m/min
Quality
Precision register on film
Compatible Materials
FFS · PE · PP · BOPP
What Master Solves
High-Speed Registration
Controls register and color-to-color deviation within the FFS production window on PE, PP and FFS films.
Gear Drive Limits
Eliminates gear backlash, vibration and gear marking on long film runs.
Film Web Tension
Stabilizes film stretch, thickness variation and tension fluctuation.
Efficiency Loss
Reduces setup waste and downtime in continuous FFS film production.
Best fit when: CI stability for FFS film · production window 150–200 m/min · register within ±0.08 mm · Master gearless platform with specialized FFS / bag-making focus.
Also consider: Sleeve quick-change / ~300 m/min → King. ~200 m/min CI entry → Ultra.
Why Master Improves Production ROI
4 Color FFS CapEx is evaluated on cost per printed meter—not lowest purchase price. Master is built to raise shift productivity and cut waste in continuous FFS and industrial film converting.
01
Higher productivity per shift
02
Reduced setup waste on FFS webs
03
Lower material loss
04
Stable quality on long FFS runs
05
Less operator adjustment
Model Your Payback
Use the LISHG ROI Calculator to map CapEx, speed and waste reduction into an estimated payback for a 4 Color Master FFS line.
Designed for FFS Film Production Requirements
FFS films require stable material handling, controlled tension and consistent printing quality to ensure downstream packaging performance.
The Master Series 4 Color FFS configuration is optimized for these requirements, providing reliable printing accuracy and production stability for automatic bag-making applications.
FFS Film Applications
01 · Form-Fill-Seal Packaging Film
Primary FFS webs for automatic bag lines
Stable tension and register for PE / PP FFS structures at 150–200 m/min—built for downstream bag-making compatibility.
02 · Automatic Bag Making Film
Food, granular and industrial bag webs
Supports automatic packaging bags and industrial packaging films where print quality and web stability must hold through bag-making.
03 · Industrial Heavy-Duty Packaging
Chemical, agri and heavy-duty PE/PP films
Handles chemical, agricultural and heavy-duty industrial packaging films with closed-loop tension and optional inline embossing.
Film Handling
On the 4 Color Master FFS configuration, closed-loop tension, low-elongation film handling, edge guiding and corona-ready workflows keep stable registration on PE, PP, BOPP and FFS films—specialized coverage for automatic packaging and industrial bag-making converting.
01
Form-Fill-Seal Packaging Film
PE / PP / FFS food bag films
02
Automatic Bag Making Film
Downstream bag-making compatible webs
03
Food Packaging Bags
Food-grade FFS / PE / PP bag films
04
Granular & Chemical Packaging
Fertilizer, resin, powder & chemical FFS bags
05
Industrial Heavy-Duty Packaging
Heavy-duty PE / PP industrial packaging films
FFS Film Application Matrix
Match substrate, speed and process focus before setup.
Optional Modules
Extend automation, curing, inspection and service for film converting lines.
Automation

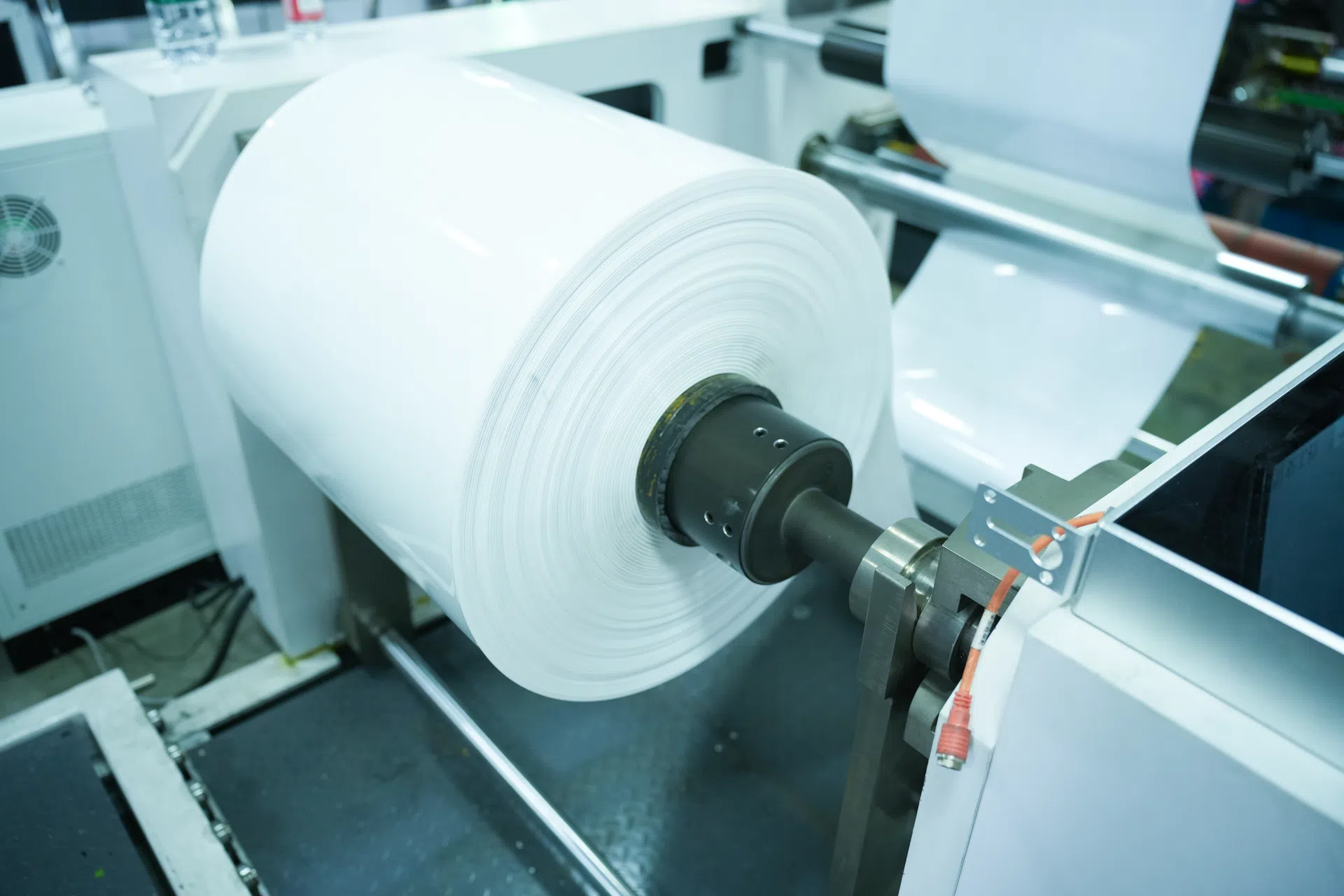

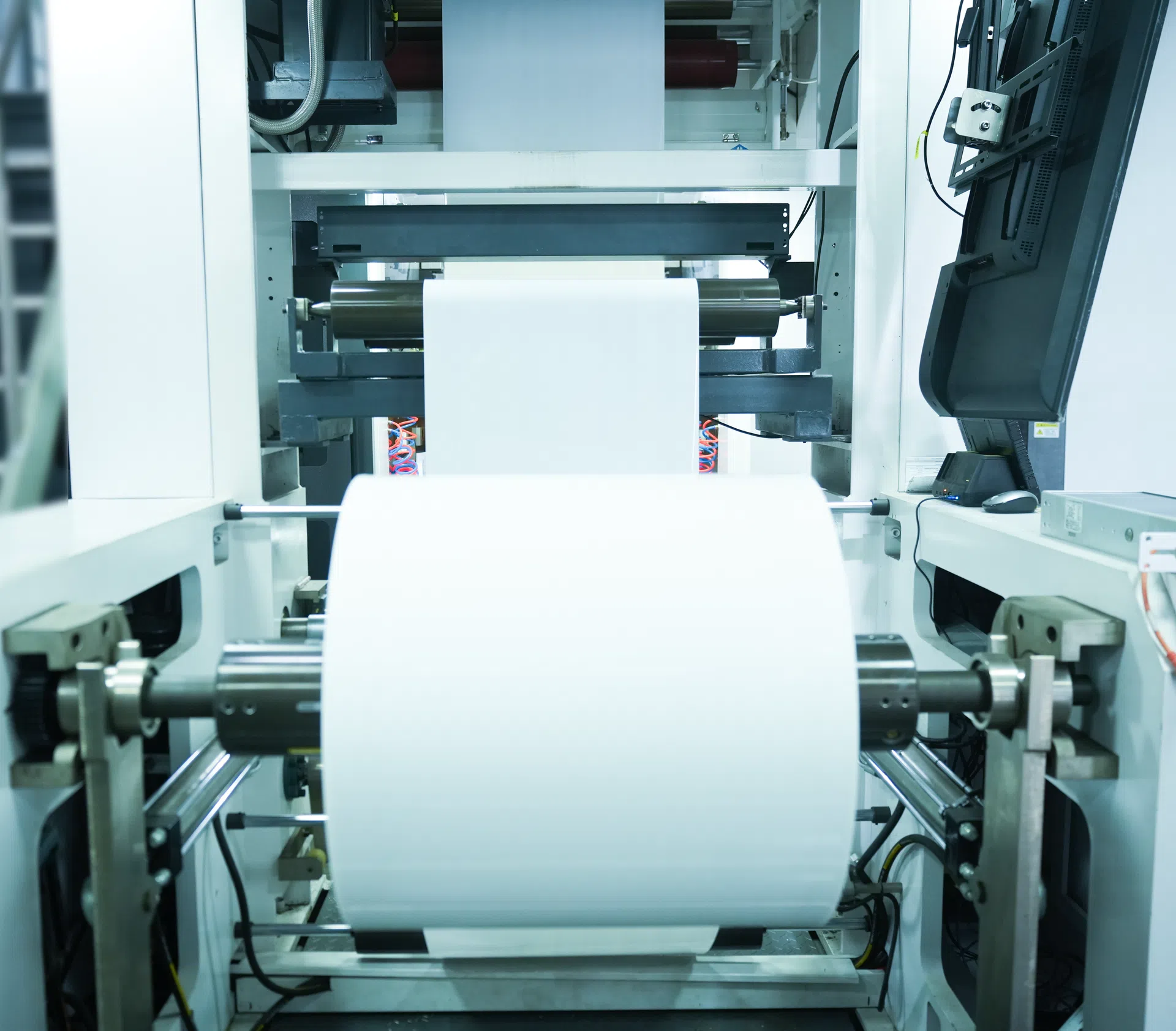

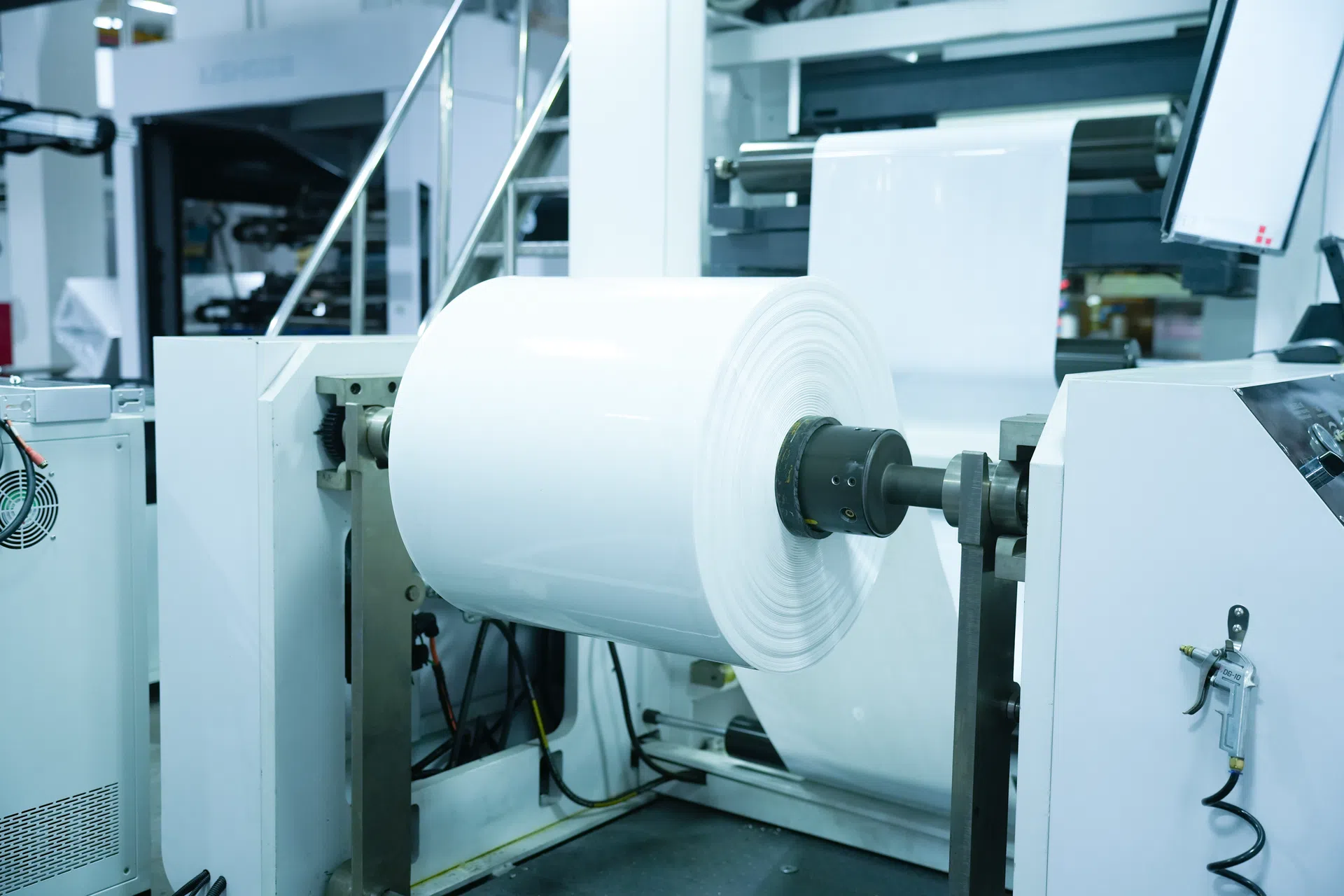

Non-stop automatic splice unwind/rewind
Changeover
Sleeve-type plate / anilox quick-change
Curing
UV curing / EB curing
Quality
Inline print inspection
Ink
Auto ink supply and circulation
Web
Static eliminator
Finishing
Inline embossing / edge processing
Service
Remote diagnostics
Platform Comparison & Selection Guide
Compare LISHG Master FFS with King and typical gear-drive CI alternatives for industrial film investment. Non-LISHG values are typical industry ranges for orientation—not claims against any named brand.
Master vs King vs Typical Gear-Drive CI
Dimension
LISHG Master
LISHG King
Typical Gear-Drive CI
Drive
Full servo gearless
Sleeve gear-driven + servo
Mechanical gear transmission
Max Speed
420 m/min mech. · 150–200 prod.
300 m/min
Often 150–250 m/min
Registration
±0.08 mm
±0.15 mm
Often ±0.15–0.20 mm
Best For
Master FFS · specialized industrial packaging film
Multi-SKU / fast changeover
Budget continuous runs
Gear Marking Risk
Eliminated (gearless)
Managed (precision gear)
Higher at elevated speed
Investment Position
Flagship platform · specialized FFS configuration
Premium · flexibility focus
Lower CapEx entry
Which LISHG Flexo Platform Fits Your Production?
If you need X, choose Y—click through to shortlist before RFQ.
If you need 4 Color FFS · 150–200 m/min production
If you need multi-SKU flexible packaging
If you need long-run stable production
If you need Stack → CI upgrade
If you need high-quality Stack production
If you need frequent job change on Stack
If you need standard packaging production
Engineering Decision Support Tools
Use LISHG calculators to evaluate investment, capacity, ink and anilox before RFQ.
ROI
ROI Calculator
Map CapEx and running efficiency to estimate investment payback.
Capacity
Capacity Calculator
Calculate daily FFS film throughput by shift and speed.
Service & Delivery
Pre-sales
FFS film sampling, embossing options, line layout, capacity estimation
In-process
Factory pre-assembly and commissioning; FFS film trial before shipment
After-sales
On-site installation & operator training; 1-year machine warranty; lifetime spare parts; 24h technical response
After-Sales Support
Global After-Sales & Warranty
Complete Commissioning
On-site installation, film-web tension profiling, and operator training by LISHG engineers.
Industry Guarantee
1-year machine warranty; lifetime spare parts support; 24h technical response for overseas markets.
