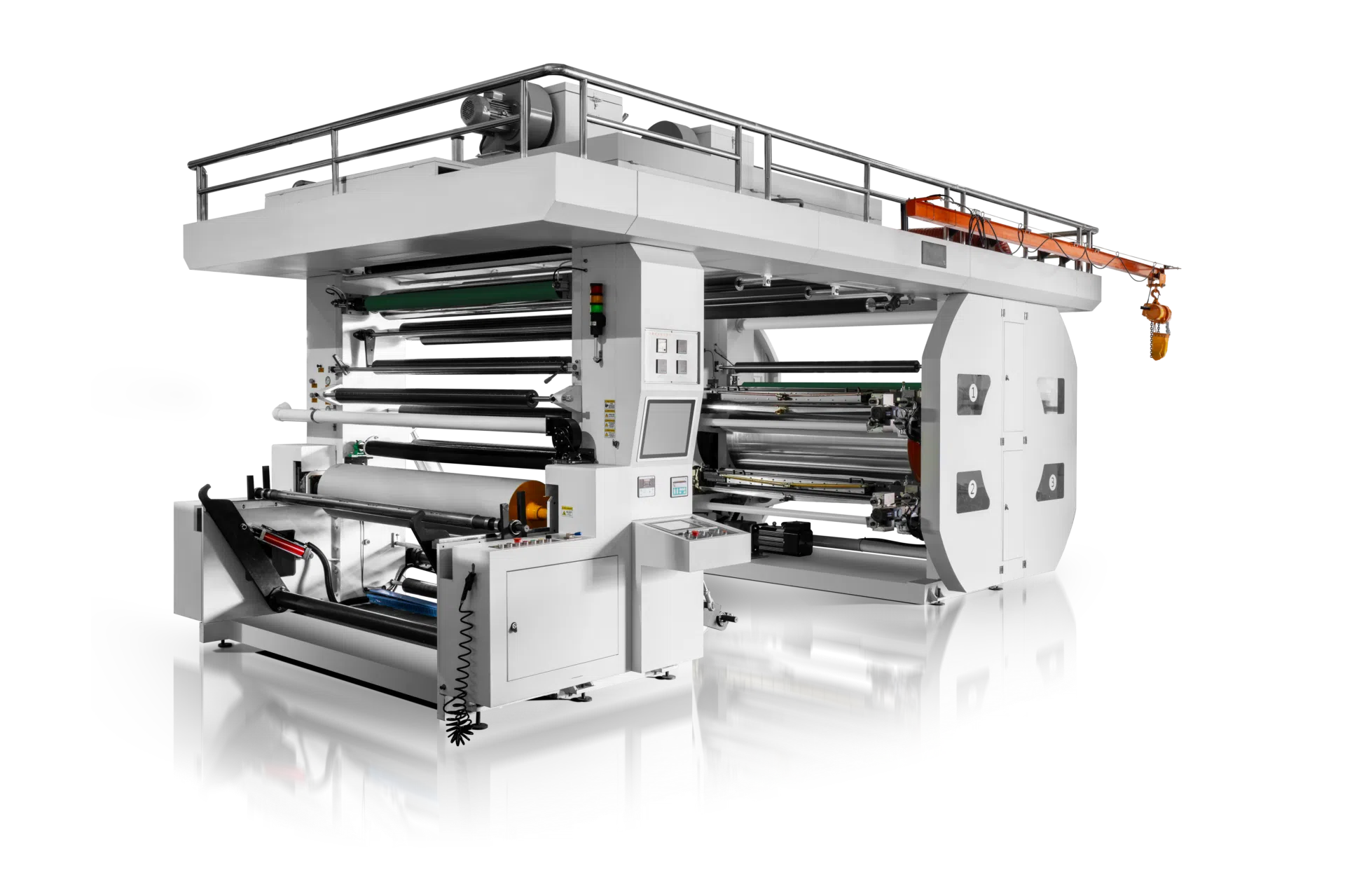

Ultra Series 4 Color Satellite CI Flexographic Printing Machine
for Paper Packaging
Industrial Satellite CI Flexo Platform · Paper Packaging · Flexible Production Configuration
Ultra Series 4 Color is an Industrial Satellite CI Flexo Platform for flexible production configuration—a Satellite CI flexo press with 100mm alloy cast frame, independent servo control and 200 m/min capability for reliable paper packaging (Paper packaging printing).
01
Satellite CI
02
100mm Cast Frame
03
Industrial Reliability
04
Production ROI
Industrial Satellite CI Flexo Platform · Industrial Satellite CI · ±0.2 mm · 150–180 m/min stable
Max Speed
200 m/min
Stable 150–180
Stations
4 Stations · 4 Colors
Focus
Flexible Paper Configuration
Definition
ULTRA Series is LISHG’s industrial satellite CI flexographic printing platform, combining reinforced cast-frame construction, servo-controlled operation and 200 m/min production capability for reliable paper and flexible packaging printing.
Machine Type
CI Flexographic Printing Machine
Structure
Satellite CI · Central Impression Drum
Application
Paper Packaging Printing
Production Fit · Flexible Production Configuration
How Apex Is Specified
Ultra Series is LISHG’s high-automation Satellite CI Flexographic Printing Machine platform—a Central Impression flexo press for continuous paper packaging. This 4 Color model emphasizes flexible production configuration—built on Ultra Series Independent Servo DNA, with four stations for standard CMYK and adaptable four-color paper packaging jobs.
01 · Configuration
Flexible Production Configuration
Four-station Ultra Series setup supports flexible production configuration for standard CMYK and adaptable four-color paper jobs.
02 · Same Platform
Identical Ultra Series Platform DNA
Same Ultra Series cast-iron rigidity, servo-controlled transmission and automatic register control.
03 · Standard Jobs
Standard Four-Color Output
Built for kraft bags, paper cups and coated paper packaging where flexible configuration and reliable four-color CI output matter most.
Buyer match: Paper packaging converters seeking Ultra Series performance with flexible production configuration—essential four-station setup for standard CMYK and four-color paper jobs.
Suggested Fit Snapshot
Production Mode
Ultra Series 4 Color flexible production configuration
Order Type
Continuous + mixed paper jobs
Speed
200 m/min
Quality
Stable CI print quality
Applicable Papers
Thermal · Kraft · Carton · Label Paper
What Ultra Solves
Stable CI Registration
Central impression structure keeps consistent multi-color print quality for paper packaging runs.
Changeover Time Loss
Servo-controlled drive and automatic register support efficient setup on continuous packaging jobs.
Film Web Tension
Optimized tension control stabilizes material feeding and reduces printing variation on PE and laminates.
Operating Efficiency
Servo-controlled CI production and automatic register control improve multi-shift machine availability on long-run paper jobs.
Best fit when: Ultra 4 Color · flexible production configuration · four stations · Independent Servo · balanced automation for paper converting.
Also consider: Mainstream packaging → Ultra 6 Color. Multi-color packaging → Ultra 8 Color. Higher industrial automation performance → Apex. Sleeve multi-SKU → King. Flagship gearless → Master.
Changeover Workflow
Apex Page Focus
01
Unload print cylinders
Remove plate and anilox cylinders for the completed SKU.
02
Mount next job
Install prepared plate and anilox sets for the next packaging design.
03
Pre-register
Automatic pre-registration shortens first-sheet alignment.
04
Run production
Stable CI register holds color through continuous industrial paper output.
Platform focus: This page covers Ultra 4 Color for flexible production configuration — Independent Servo CI for converters who need a compact four-station setup.
Production Scope
Ultra Series 4 Color · Paper Packaging
200 m/min
Maximum Printing Speed
Max 200 · stable industrial production
4 Stations
Flexible Configuration
Four-station Ultra Series setup
4 Colors
Printing Colors
Flexible four-color production focus
CI Flexo
Printing Structure
Central Impression · Paper Packaging
Printing Width
600–1600 mm
Application
Paper Packaging
Applicable Papers
Kraft · Coated Paper · PE-Coated Paper · Cup Stock
Machine Type
CI Flexographic Printing Machine · Ultra Series 4 Color CI Flexo Platform
Printing Structure
Central Impression Satellite Drum Structure
Drive System
Independent Servo Controlled Drive System
Core Technology · Satellite CI · Cast Frame · Servo Control
Industrial Reliability
Ultra Series is LISHG’s Industrial Satellite CI platform for stable batch paper packaging production—emphasizing mechanical rigidity, long-run reliability and ROI, not maximum flagship speed or precision.
01
Reinforced Satellite CI Structure
100mm alloy cast frame provides excellent mechanical stability for continuous production.
02
Servo Controlled Printing System
Independent servo control improves printing consistency and reduces adjustment time.
03
Stable High-Speed Production
Maximum speed up to 200 m/min for reliable industrial printing applications.
04
Wide Substrate Compatibility
Designed for thermal, kraft, carton and label paper packaging materials.
05
Modular Industrial Design
Integrated modular structure simplifies maintenance and supports customized configurations.
Core Differentiator
100mm Alloy Cast Frame — high rigidity that reduces vibration and register drift during continuous 150–180 m/min industrial runs.
Machine Architecture · Satellite CI
Central Impression Satellite
Ultra uses a Central Impression Satellite Drum Structure—the web stays wrapped on the CI drum across color stations, reducing feed fluctuation and improving register stability for continuous roll production.
Structure
Central Impression Satellite Drum
Drive
Independent Servo Controlled Drive
Frame
100mm Alloy Cast Frame
Substrates
Thermal · Kraft · Carton · Label Paper
Paper Handling & Substrates
Paper Packaging Focus
Unlike thin-film converting, paper packaging performance is defined by stable web feed, drying and register. Ultra Series is engineered for kraft, coated paper, PE-coated paper and cup-stock converting.
01
Closed-loop tension control
Independent tension zones continuously correct web feed and speed change on paper substrates.
02
Stable paper-web handling
Stable web path and drying control reduce moisture-related register drift on kraft and coated papers.
03
Edge guiding
Precise edge alignment keeps paper tracking stable through continuous multi-SKU production runs.
04
Surface & coating readiness
Supports coated / kraft paper workflows for reliable ink wetting and adhesion on kraft / coated / PE-coated paper.
Applicable Papers
Kraft
Bags & wrapping
Coated Paper
Brand & retail packs
PE-Coated
Cup stock & food wraps
Cup Stock
Paper cups & containers
Paperboard
Carton & folding jobs
Industrial Structure · 100mm Alloy Cast Frame
Structure First Reliability
Many 150–200 m/min CI flexo presses fail not on headline speed, but on mechanical vibration, register drift and long-run stability. Ultra solves these with structure first.
Reinforced Cast Frame
100mm
Alloy Cast Frame
High-rigidity satellite CI chassis engineered for continuous industrial duty on paper webs.
High mechanical rigidity
Stiffer frame path reduces vibration transfer into print units.
Lower long-run register drift
Stable geometry supports ±0.2 mm industrial register class.
Reliable continuous production
Built for multi-shift batch output—not peak marketing speed.
Production ROI
Ultra Series improves production ROI through servo-controlled CI production, stable long-run output and balanced CapEx for industrial CI film production—keeping industrial reliability on paper webs.
01
Faster SKU changeover
02
Reduced setup waste on paper webs
03
Lower material loss
Ultra Series 4 Color · Flexible Production Configuration
01 · Snack Packaging
Paper-web tension + register stability
Maintains solid coverage and brand graphics on kraft bags and coated paper packs at speed. Suitable for food paper packaging, shopping bags and industrial paper converting where edge sharpness and color density must hold across long runs.
02 · Paper Bags
Stable print on kraft bag structures
Delivers clean boundaries and vivid dots on PE-coated cup stock and coated packaging paper. Controlled drying and closed-loop register protect brand graphics where paper moisture and drying load can otherwise shift color-to-color alignment.
03 · Frozen Food & Coffee Packaging
Brand color for frozen food and coffee bags
Supports brand graphics for frozen food packaging and coffee bags on kraft, coated paper and PE-coated paper structures. Servo-controlled drive and automatic register keep color consistent through continuous paper packaging production.
Paper Packaging Application Matrix (μm)
Match substrate, speed, ink and anilox focus before process setup.
Optional Modules
Extend inspection, curing and web handling for paper packaging lines.
Automation
Non-stop automatic splice unwind/rewind
Quality
Inline print inspection
Curing
UV curing / EB curing
Service
Remote diagnostics
Ink
Auto ink supply and circulation
Web
Static eliminator
Finishing
Trim rewind
Corona
Corona treatment unit
Ultra vs Apex · Industrial Reliability vs Performance
Platform Differentiation
Ultra Selection Logic: Ultra is not a downsized Apex. Apex emphasizes Servo Gear Driven Industrial Performance; Ultra emphasizes Robust Satellite CI Industrial Reliability—mechanical rigidity, stable batch output and ROI.
Dimension
Apex
Ultra
Platform identity
Servo Gear Driven Industrial Performance
Robust Satellite CI Industrial Reliability
Primary focus
Automation / register efficiency
Cast-frame rigidity / vibration control
Speed story
~300 m/min industrial CI
Max 200 · Stable 150–180 m/min
Register class
±0.1–0.15 mm
±0.2 mm industrial class
Also consider: sleeve multi-SKU flexibility → King. Flagship gearless speed/precision → Master (±0.05–0.08 mm). Higher industrial automation performance → Apex.
Engineering Decision Support Tools
Use LISHG calculators to evaluate investment, capacity, ink and anilox before RFQ.
ROI
ROI Calculator
Map CapEx and running efficiency to estimate investment payback.
Capacity
Capacity Calculator
Calculate daily paper packaging throughput by shift and speed.
Anilox
Anilox Selector
Match LPI/BCM to kraft, coated, thermal and label papers.
Service & Delivery
Pre-sales
Film substrate sampling, line layout, capacity estimation
In-process
Factory pre-assembly and commissioning; full-speed film trial before shipment
After-sales
On-site installation & operator training; 1-year machine warranty; lifetime spare parts; 24h technical response
After-Sales Support
Global After-Sales & Warranty
Complete Commissioning
On-site installation, film-web tension profiling, and operator training by LISHG engineers.
Industry Guarantee
1-year machine warranty; lifetime spare parts support; 24h technical response for overseas markets.
