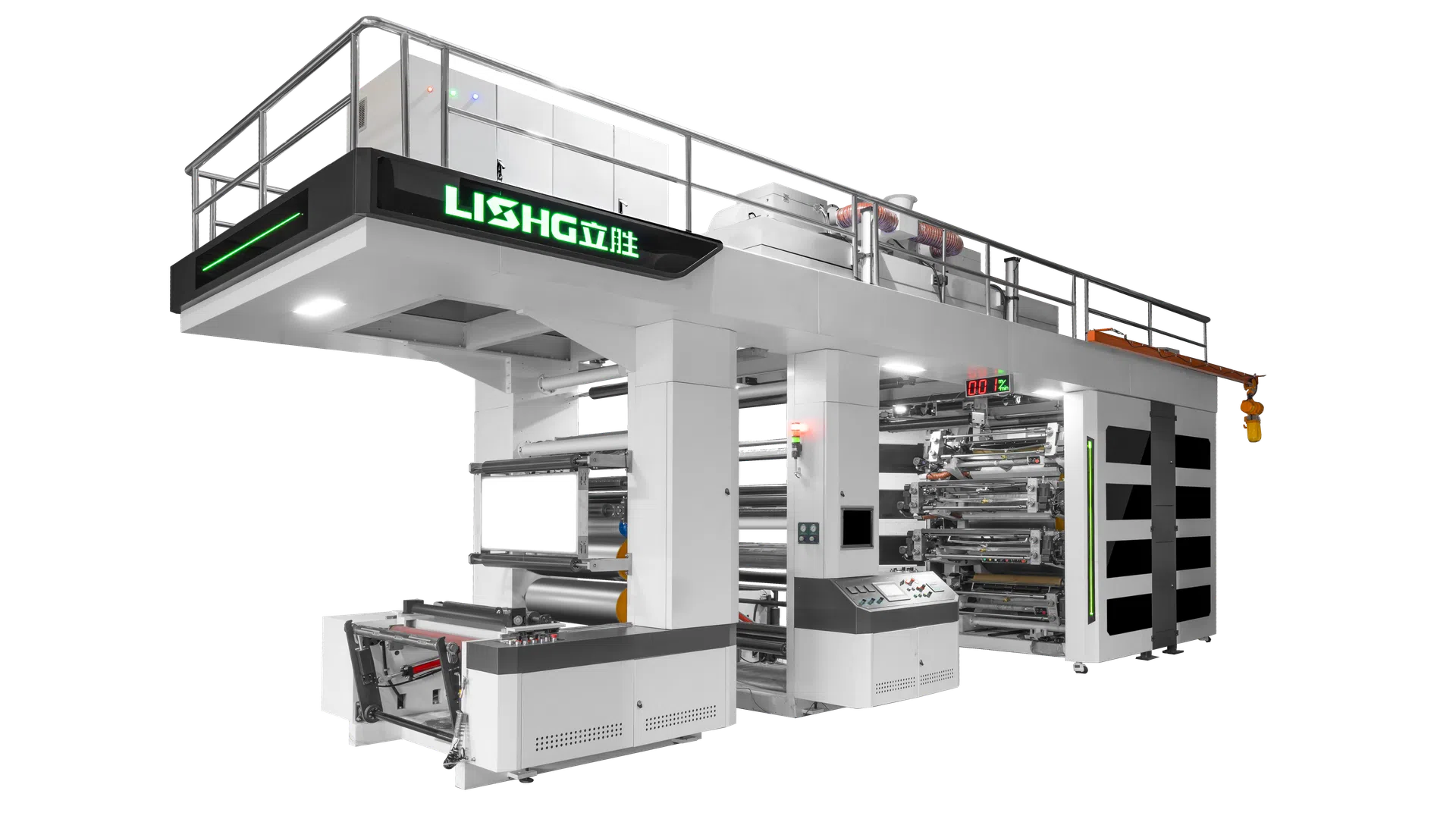

APEX Series 8 Color Servo Gear Driven CI Flexographic Printing Machine for High-Quality Packaging Films
Main Display
APEX Series 8 Color Servo Gear Driven CI Flexographic Printing Machine for High-Quality Packaging Films
Tap to zoom
Machine Overview
Apex Series
Apex SeriesFilm

APEX Series 8 Color Servo Gear Driven CI Flexographic Printing Machine for High-Quality Packaging Films

APEX Series 8 Color Servo Gear Driven CI Flexographic Printing Machine delivers precise servo control and stable printing for PE, PET and BO

At a glanceKey procurement specs
Max Speed
250 m/min
Printing
8 Colors
Max Width
600–1400 mm
Materials
Film
Next stepTalk to sales engineering
Talk to Sales Technical Specs
Key capabilities
Machine strengths for evaluation and quotation.
4 items
Servo Gear Driven Control

Advanced servo control combined with precision gear transmission provides stable printing performance and improved production efficiency.

Automatic Register Control

Camera-based register control system maintains accurate color alignment and reduces material waste during continuous production.

Quick Job Change Sleeve System

Sleeve-type plate cylinder and anilox roller design enables faster changeovers and improves production flexibility.

Efficient Drying System

Optimized hot air drying with electric heating improves drying performance while supporting stable energy management.

Quotation checklist
Confirm project details before requesting a proposal.
Substrate
Film
Print width
Custom width
Color units
8 colors
Series fit
Apex Series
Quick RFQ focus
  • What this machine is designed to do
  • Which substrates and applications it fits
  • How its specifications compare with alternatives
  • What buyers should confirm before quotation
AI summaryProcurement brief

APEX Series 8 Color Servo Gear Driven CI Flexographic Printing Machine for High-Quality Packaging Films at a glance

APEX Series 8 Color Servo Gear Driven CI Flexographic Printing Machine combines servo control technology, precision gear transmission, and advanced automation features to deliver stable high-quality printing performance for PE, PET, BOPP and flexible packaging films. Max speed: 300 m/min Width: 600–1400 mm

What is it best for?What materials does it support?How fast can it run?Why choose this series?
Primary use
Film
Series
Apex Series
Speed class
250 m/min
Drive
Servo Gear
Materials
Project-specific

Available Models

Shared specs merge into one cell; only Printing Width splits when widths differ.

Available Models

How to choose the right Apex model — see Best For under each model.

ModelAPEX Series 6 Color Servo Gear Driven CI Flexographic Printing Machine for Flexible Film PackagingAPEX Series 6 Color Servo Gear Driven CI Flexographic Printing Machine with Non-Stop Unwinding & Rewinding System for Flexible Film PackagingAPEX Series 8 Color Servo Gear Driven CI Flexographic Printing Machine for High-Quality Packaging FilmsAPEX Series 4 Color Servo Gear Driven CI Flexographic Printing Machine for Paper PackagingAPEX Series 6+1 Color Servo Gear Driven CI Flexographic Printing Machine with Independent Coating Unit and Non-Stop Rewinding SystemAPEX Series 4+4 Color Double Side CI Flexographic Printing Machine for Woven PP Bags with Non-Stop Winding SystemAPEX Series 6+6 Color Double Side CI Flexographic Printing Machine for Woven PP Valve Bags
Printing Width600–1400 mm600–1400 mm Web Width Configuration600–1400 mm560–1360 mm560–1360 mm760mm per side (Maximum overall width 1600mm)760mm per side (Maximum overall width 1600mm)
Printing Speed300 m/min
Colors6-colors
SubstratePE film / PET film / BOPP film / PVC film / Nylon film / flexible packaging films
ApplicationFlexible packaging printing
Best ForFlexible packaging printing; PE PET BOPP film printing
Technical Parameters

Specification matrix for procurement review

Structured machine parameters for engineering sign-off, RFQ comparison and factory quotation.

26 parametersCustom build availableApex Series
Buyer FAQ
Procurement matrix
Machine specification datasheet
Parameter
Specification
ParameterSpecification
Machine SeriesAPEX Series
Machine ModelAPEX-8 Color
Printing Colors8 Colors
Printing StructureCentral Impression (CI) Flexographic Printing System
Drive SystemServo Gear Driven Transmission System
Servo Control SystemAdvanced Servo Motion Control System
Web Width Range600 mm / 800 mm / 1000 mm / 1200 mm / 1400 mm
Maximum Printing Width560 mm / 760 mm / 960 mm / 1160 mm / 1360 mm
Compatible SubstratesPE Film, PET Film, BOPP Film, PVC Film, Nylon Film, Flexible Packaging Films
Printing Plate Thickness1.14 mm / 1.7 mm / 2.28 mm / 2.84 mm / 3.94 mm (Customized Available)
Printing Repeat LengthStandard 400 mm; Customized Range 380–800 mm
Maximum Mechanical Speed250 m/min
Register AccuracyLongitudinal: ±0.15 mm; Lateral: ±0.15 mm
CI Printing SystemCentral Impression Drum Flexographic System
Gear Module1.5 mm Precision Gear System
Ink CompatibilityWater-Based Ink / Solvent-Based Ink
Drying SystemHigh-Efficiency Hot Air Drying System
Heating MethodElectric Heating System
Maximum Oven TemperatureUp to 80°C (Ambient Temperature 20°C)
Web Tension ControlAutomatic Closed-Loop Tension Control System
Unwinding / Rewinding Core3 Inch Core
Maximum Unwinding DiameterMax. Φ1000 mm
Maximum Rewinding DiameterMax. Φ1000 mm
Control SystemIndustrial HMI Touch Screen Control System
Application IndustriesFlexible Packaging, Food Packaging, Industrial Packaging Printing
Technical article
Machine structure, options and operating workflow
APEX SERIES CI FLEXOBalanced Automation

Apex Series 8 Color Servo Gear Driven CI Flexographic Printing Machine
for Flexible Packaging

Servo Gear Driven CI Flexo Solution · Multi-Color Packaging Capability

Apex Series 8 Color is a Servo Gear Driven CI Flexo Solution for multi-color packaging capability—a Central Impression (CI) flexo press delivering Automation Upgrade, Production Efficiency and Balanced Investment on continuous flexible packaging.

01

Servo Gear Driven

02

Automation Upgrade

03

Production Efficiency

04

Balanced Investment

Servo Gear Driven CI Flexo Solution · Balanced Automation · Balanced Investment

LISHG Apex Series 8 Color CI Flexographic Printing Machine for Flexible Packaging

Speed

300 m/min

Stations

8 Stations · 8 Colors

Focus

Multi-Color Packaging Capability

Definition

Apex Series 8 Color is a Servo Gear Driven CI Flexographic Printing Machine—a Central Impression (CI) flexo press for multi-color packaging capability, delivering Balanced Automation (Servo · Automation · Register · Efficiency) on continuous flexible packaging lines.

Machine Type

CI Flexographic Printing Machine

Structure

Central Impression (CI) Flexo

Application

Flexible Packaging Film Printing

Production Fit · Multi-Color Packaging Capability

How Apex Is Specified

Apex Series is LISHG’s high-automation Servo Gear Driven CI Flexographic Printing Machine platform—a Central Impression flexo press for continuous flexible packaging. This 8 Color model emphasizes multi-color packaging capability—built on Apex Series Servo Gear Driven DNA, brand color systems and higher value-add print jobs.

01 · Multi-Color

Multi-Color Packaging Capability

Eight printing units expand multi-color packaging capability—brand color systems, complex design and higher value-add print jobs.

02 · Same Platform

Identical Apex Series Platform DNA

Same Apex Series cast-iron rigidity, servo gear transmission and automatic register control.

03 · Value-Add Jobs

Higher Value-Add Print Tasks

Built for demanding flexible packaging work where multi-color capability, design complexity and long-run industrial stability matter most.

Buyer match: Flexible packaging converters seeking Apex Series performance with multi-color packaging capability—eight-station high-configuration setup for complex multi-color film jobs.

Suggested Fit Snapshot

Production Mode

Apex Series 8 Color multi-color packaging capability

Order Type

Continuous + mixed film jobs

Speed

300 m/min

Quality

Stable CI print quality

Applicable Films

BOPP · PET · PE · CPP · Laminated

What Apex Solves

Stable CI Registration

Central impression structure keeps consistent multi-color print quality for flexible packaging runs.

Changeover Time Loss

Servo gear drive and automatic register support efficient setup on continuous packaging jobs.

Film Web Tension

Optimized tension control stabilizes material feeding and reduces printing variation on PE and laminates.

Operating Efficiency

Servo gear automation and automatic register control improve multi-shift machine availability on long-run film jobs.

Best fit when: Apex 8 Color · multi-color packaging capability · eight stations · Servo Gear Driven · balanced automation for complex film jobs.

Also consider: Flexible production configuration → Apex 4 Color. Mainstream packaging → Apex 6 Color. Frequent SKU / sleeve quick change → King. Flagship productivity → Master.

Changeover Workflow

Apex Page Focus

01

Unload print cylinders

Remove plate and anilox cylinders for the completed SKU.

02

Mount next job

Install prepared plate and anilox sets for the next packaging design.

03

Pre-register

Automatic pre-registration shortens first-sheet alignment.

04

Run production

Stable CI register holds color through continuous industrial film output.

Platform focus: This page covers Apex 8 Color for multi-color packaging capability — Servo Gear Driven CI for higher station counts on continuous flexible film packaging.

Production Scope

Apex Series 8 Color · Flexible Packaging

300 m/min

Maximum Printing Speed

Industrial production speed class

8 Stations

Multi-Color Capability

Eight-station Apex Series setup

8 Colors

Printing Colors

Multi-color packaging capability focus

CI Flexo

Printing Structure

Central Impression · Flexible Packaging

Printing Width

600–1600 mm

Application

Flexible Packaging

Applicable Films

PE · PET · BOPP · PVC · Laminated Films

Machine Type

CI Flexographic Printing Machine · Apex Series 8 Color CI Flexo Platform

Printing Structure

Central Impression Drum with Industrial Print Units

Drive System

Servo Gear Transmission + Industrial System

Core Features · Servo · Automation · Register · Efficiency

Balanced Automation

Apex Series is a Servo Gear Driven CI platform—servo control plus precision gear transmission for converters upgrading from conventional gear drive to higher automation and register efficiency.

01

Servo Gear Driven Control

Servo motor control combined with precision gear transmission improves printing stability and production efficiency.

02

Automatic Register Control

Camera-based register control maintains consistent color alignment during continuous production.

03

Automation & Production Efficiency

Servo gear automation reduces operator load and improves uptime on continuous flexible packaging jobs.

04

Efficient Production Balance

Designed for manufacturers requiring higher automation than conventional gear drive—Balanced Automation without flagship complexity.

Film Handling & Substrates

Flexible Packaging Focus

Unlike paper converting, flexible packaging performance is defined by thin-film tension stability. Apex Series is engineered for low-elongation film handling across PE, PET, BOPP, CPP and laminated webs.

01

Closed-loop tension control

Independent tension zones continuously correct stretch and speed change on thin films.

02

Low elongation film handling

Stable web path control reduces elongation-related register drift on PE and laminates.

03

Edge guiding

Precise edge alignment keeps film tracking stable through continuous multi-SKU production runs.

04

Corona treatment compatibility

Supports corona-treated film workflows for reliable ink wetting and adhesion on PE / BOPP / PET.

Applicable Films

BOPP

Snack & confectionery

PET

Barrier & food packs

PE

Pouches & laminates

CPP

Sealant & pouch webs

Laminated Films

Multi-layer structures

Industrial Structure · Heavy-Duty Cast Frame

Built for Efficient Servo Gear Film Production

Efficient Servo Gear Driven print quality on film webs depends on a rigid, proven frame. Apex Series central impression structures are machined on heavy-duty gantry centers to keep deflection under control during continuous flexible packaging production.

Mazak 5-Axis CNC machining for Apex Series flexible packaging CI flexo press

Mazak 5-Axis Machining Center

Central cylinder slides and core mounting frameworks are milled in a single-stage clamping setup for consistent CI drum alignment in continuous production.

Heavy-duty gantry milling for Apex Series flexible packaging flexo press

Heavy-Duty Gantry Milling

Processes monolithic cast-iron wallboards (up to 120 mm thickness). Reduces structural vibration for stable multi-shift film converting.

Production ROI

Apex Series improves production ROI through servo gear automation, stable long-run output and balanced CapEx for industrial CI film production—keeping industrial reliability on film webs.

01

Faster SKU changeover

02

Reduced setup waste on film webs

03

Lower material loss

Apex Series 8 Color · Multi-Color Packaging Capability

Flexible packaging print samples from Apex Series CI flexo press

01 · Snack Packaging

Thin-film tension + register stability

Maintains solid coverage and brand graphics on BOPP, PET and PE snack films at speed. Suitable for confectionery, chips and industrial film converting where edge sharpness and color density must hold across long runs.

02 · Stand-Up Pouches

Stable print on laminated structures

Delivers clean boundaries and vivid dots on PE / CPP / composite laminated pouch structures. Controlled drying and closed-loop register protect brand graphics where film stretch and heat load can otherwise shift color-to-color alignment.

03 · Frozen Food & Coffee Packaging

Brand color for frozen food and coffee bags

Supports brand graphics for frozen food packaging and coffee bags on BOPP, PET, PE and laminated structures. Servo gear drive and automatic register keep color consistent through continuous flexible packaging production.

Flexible Packaging Application Matrix (μm)

Match substrate, speed, ink and anilox focus before process setup.

Typical Application
Applicable Film
Thickness
Recommended Speed
Ink System
Anilox Focus
Process Note
Snack Packaging
BOPP / PET / PE Laminated Films
12–120 μm
300 m/min
Water-based / solvent
400–600 LPI · solid + line
High-speed solids and brand graphics on snack films
Stand-Up Pouches
PE / CPP / Composite Films
40–150 μm
300 m/min
Water-based / UV
500–800 LPI · fine graphics
Laminated structures need stable tension & sharp register
Food Flexible Packaging
BOPP / PET / PE Films
10–120 μm
300 m/min
Water-based / food-grade
500–700 LPI · light coverage
Thin-film stretch sensitive; prioritize closed-loop tension
Industrial Film Packaging
PE / PET / BOPP / Laminated Films
20–150 μm
300 m/min
Water-based / solvent
400–700 LPI · solid + line
Mainstream industrial film converting on Apex Series platform
Paper Packaging (Secondary)
Paper / Coated Paper (selected jobs)
—
Process-dependent
Water-based
Application review required
Secondary scope—Apex Series primary focus remains flexible packaging film

Optional Modules

Extend inspection, curing and web handling for flexible packaging lines.

Automation

Non-stop automatic splice unwind/rewind

Quality

Inline print inspection

Curing

UV curing / EB curing

Service

Remote diagnostics

Ink

Auto ink supply and circulation

Web

Static eliminator

Finishing

Trim rewind

Corona

Corona treatment unit

Why Upgrade · Servo Gear Driven vs Conventional Gear Drive

Apex Selection Logic

Apex pages use a different comparison logic from Master. Here the question is not “why buy flagship”—it is why upgrade from conventional gear drive to Servo Gear Driven automation, register control and production efficiency.

Dimension

Conventional Gear Drive

Apex Servo Gear Driven

Drive architecture

Mechanical gear transmission (no servo)

Servo Gear Driven CI flexo transmission

Automation level

No servo — mechanical gear only

Servo Gear Driven CI flexo automation for daily production

Register control

Manual / basic register

Camera-based automatic register control

Production goal

Basic continuous CI flexo printing

Efficient CI flexographic packaging production

Buyer reason

Entry industrial CI flexo

Upgrade path — CI Flexo · Balanced Automation

LISHG Series Roles

Note: Master selection logic (flagship vs conventional) is not used on Apex pages. Apex owns the upgrade story: Servo Gear Driven vs Conventional Gear Drive (mechanical gear, no servo). Series cut: Apex = long-run Servo Gear Driven; King = Sleeve CI multi-SKU flexibility.

Apex vs King: Same speed class, different job mix — Apex = Servo Gear Driven · long-run stability · balanced automation; King = Sleeve CI · frequent changeover · multi-SKU flexibility. Choose King when SKU switches dominate; choose Apex when long-run film output and ownership cost dominate.

Engineering Decision Support Tools

Use LISHG calculators to evaluate investment, capacity, ink and anilox before RFQ.

ROI

ROI Calculator

Map CapEx and running efficiency to estimate investment payback.

Open ROI Calculator →

Capacity

Capacity Calculator

Calculate daily flexible packaging throughput by shift and speed.

Open Capacity Calculator →

Ink

Ink Calculator

Estimate wet/dry ink volume by coverage and film substrate.

Open Ink Calculator →

Anilox

Anilox Selector

Match LPI/BCM to PE, PET, BOPP and laminated films.

Open Anilox Selector →

Service & Delivery

Pre-sales

Film substrate sampling, line layout, capacity estimation

In-process

Factory pre-assembly and commissioning; full-speed film trial before shipment

After-sales

On-site installation & operator training; 1-year machine warranty; lifetime spare parts; 24h technical response

LISHG after-sales engineers providing on-site commissioning and technical support

After-Sales Support

Global After-Sales & Warranty

Complete Commissioning

On-site installation, film-web tension profiling, and operator training by LISHG engineers.

Industry Guarantee

1-year machine warranty; lifetime spare parts support; 24h technical response for overseas markets.

Factory Direct Support

LISHG MACHINERY

Wenzhou Lisheng Printing and Packaging Machinery Co., Ltd.
East 2nd Road 669, Nanbin Street, Ruian, Wenzhou, China

Direct Line / WhatsApp +86-13588976785

Related topics: APEX Series 6 Color Servo Gear Driven CI Flexographic Printing Machine | LISH...

Patents · Certifications · Standards

Documented quality systems, IP, and export compliance

ISO process control, CE-oriented export documentation, and patent records — one compliance layer buyers can audit, not scattered certificate thumbnails alone.

Standard

Quality management compliance

ISO 9001 process control across machining, assembly, inspection, and shipment documentation.

Standard

Mechanical safety standards

Safety and technical documentation prepared for applicable export machine configurations.

Standard

International export compliance

CE-oriented packs, English manuals, and electrical diagrams shipped with export builds when required.

ISO

ISO 9001 Quality Management

Availability
Certificate documents available for supplier audit

Covers machining, assembly, inspection, and shipment documentation controls. Certificate file shared during FAT or supplier audit.

CE

CE-oriented export configurations

Availability
Conformity documentation prepared for applicable export builds

Safety and technical file scope for markets that require CE-oriented machine documentation packs.

Patent

Patent portfolio (60+)

Availability
China National Intellectual Property Administration (CNIPA) and related filings

Filings related to gearless drive, drying, web tension, and register control. Individual patent numbers appear on certificate cards below when published.

Patent & certificate gallery

Full portfolio →
Buyer evaluation

Why choose this model & common questions

Structured reasons to shortlist APEX Series 8 Color Servo Gear Driven CI Flexographic Printing Machine for High-Quality Packaging Films, plus answers buyers ask before requesting a quote.

Procurement review 8 FAQs
EVAL-AWhy this machine

Based on your profile: Film · 600–1400 mm · 300 m/min

high-speed servo gear CI flexo

Process match

Apex Series is the strongest fit for Film because Premium servo gear CI for converters who need top register quality on high-speed film jobs. At your target speed of 300 m/min, this platform keeps register stable, startup waste low, and changeovers practical for repeat jobs.

Material fit

You selected Film. Apex Series is engineered for Film. Core substrate window: . This reduces tension surprises and ink-transfer issues on your primary material.

Production envelope

Width target 600–1400 mm and speed 300 m/min sit inside the Apex Series envelope (600–1400 mm, 300 m/min). Budget high and High Automation with Automatic Register Control and Web Tension Control automation align with High Automation with Automatic Register Control and Web Tension Control-automation workflows at this output level.

Strengths & tradeoffs

Key advantages: Servo Gear Driven Control; Automatic Register Control; Quick Job Change Sleeve System; Efficient Drying System. Tradeoff to confirm: Higher investment than King or Ultra for entry-level film runs. If your mix shifts toward ultra-thin film at 400–500 m/min, compare with another LISHG line before finalizing.

Core strengths
Servo gear precisionHigh-speed filmPremium packaging quality
EVAL-BBuyer FAQ

Lead time, machine selection, installation, and export support.

Annual failure rate is below 1.5%. Without wearable gear components, unexpected production downtime is greatly reduced.

View all buyer questions
Model comparison

Compare with similar models

Keep APEX Series 8 Color Servo Gear Driven CI Flexographic Printing Machine for High-Quality Packaging Films as the baseline, then pick any catalog model to review specification differences side by side.

Baseline locked 5 suggested matches
Open full compare workspace
A Current model
APEX Series 8 Color Servo Gear Driven CI Flexographic Printing Machine for High-Quality Packaging Films - LISHG Film Flexo Printing Machine
Apex Series

APEX Series 8 Color Servo Gear Driven CI Flexographic Printing Machine for High-Quality Packaging Films

Quick picks for this model
Step-by-step matching

Machine Recommendation Wizard

Answer seven quick questions — we rank live catalog models and show the best match with alternatives for your project.

Topic cluster links

Explore connected guides, industries, and machines in this topic cluster.

LISHG Support Path

Built. Delivered. Supported.

How each APEX Series press moves from LISHG build to your floor — and stays supported after install.

LISHG Campus · 360°

Drag to explore the workshop and showroom live.

Visit Factory Page
  1. Manufacturing

    Build, assemble, and factory-accept your press at the LISHG campus.

  2. Installation

    Ship, install, and commission to production readiness.

  3. Training

    Train operators and supervisors on your configuration.

  4. Service

    Remote diagnostics, spare parts, and maintenance guidance.

  5. Upgrade

    Add options and capacity as your plant grows over 10–20 years.

Take the shortest path to the right machine

Interested in APEX Series 8 Color Servo Gear Driven CI Flexographic Printing Machine for High-Quality Packaging Films? Submit the form and our team will confirm specs, export configuration, and lead time.

Still comparing alternatives? Use the 7-step selector, compare models side-by-side, or review export case studies on this page — then return here to quote this line.

  • Quote the exact model shown on this page with your substrate and width requirements.
  • Factory acceptance testing, English documentation, and export-ready machine configurations.
  • Optional live sample trials and register sign-off before shipment.
  • Installation planning, operator training, and responsive after-sales for export buyers.
  • 60+ patents and ISO 9001 manufacturing across a 35,000 m² production campus.
  • Use the 7-step selector on this page if you want to validate this model against your production targets.
Get pricing

Fast quote for CI, gearless, or stack lines with export documentation.

Product selector

Seven guided steps — substrate, width, speed, colors — matched to live Master, King, and Honor specs.

Side-by-side models

Benchmark printing width, speed, colors, and finishing options before you quote.

View case studies

See real installs, substrate trials, and production results from export projects.

ISO 9001CE certifiedExport supportFactory direct

Tell us what you need

We will respond within 24 hours

Machine requirements
Commercial & Technical Consultation

Discuss configuration, lead time and commercial proposal.

Contact our team to review production targets, specification scope, pricing, delivery and customization options for Apex Series APEX Series 8 Color Servo Gear Driven CI Flexographic Printing Machine for High-Quality Packaging Films.

01
Solution Planning

Align production target, substrate and automation level with the appropriate machine platform.

02
Specification Alignment

Clarify color stations, width, drying system and unwinding or rewinding configuration before quotation.

03
Commercial Preparation

Use structured specs, references and buyer FAQs to move efficiently from shortlist to proposal.

View All Apex Series
