Food-Grade Packaging Solutions
High-Speed Servo CI Flexo Printing Machines for Paper Cups
Paper cup manufacturing demands absolute precision on heavy, PE-coated paperboard (150-350 gsm). LISHG's central impression flexo presses utilize advanced gearless technology and independent servo drives to guarantee dynamic register tolerance within ±0.08 mm, preventing thick paper stretch or gear chatter lines.
±0.08 mm
Register Tolerance
150-350 gsm
Paperboard Range
Eco-Friendly
Water-Based Ink Fit
ENGINEERED FOR PAPER CUPS
How LISHG Solves the Critical Challenges of Paper Cup Printing

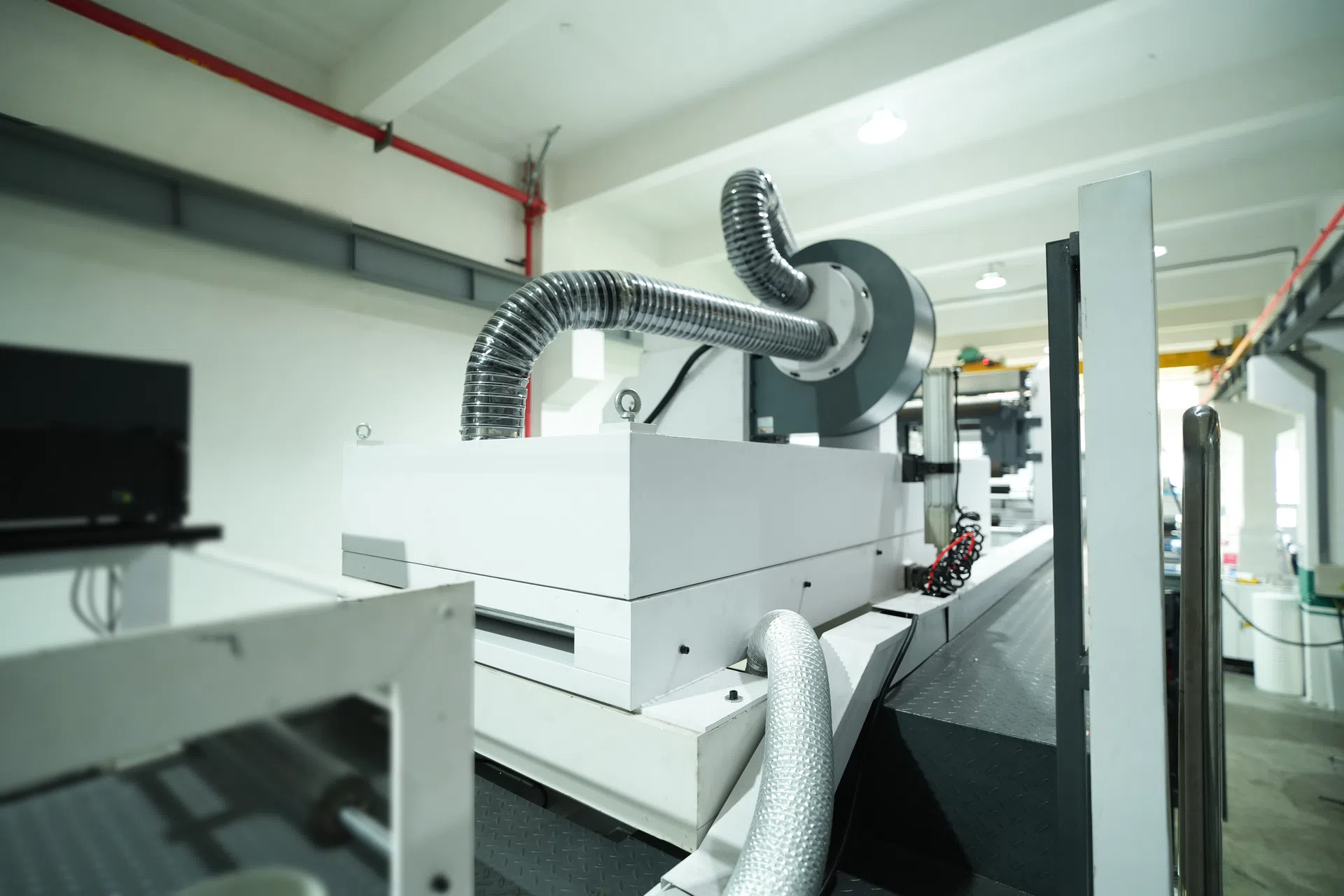

Unlike thin films, thick cup stock (with single or double PE coating) exerts intense tension spikes and undergoes thermal deformation during fast drying. LISHG tackles these challenges directly using heavy-duty cast-iron wallboards, precision temperature-controlled central impression drums, and high-capacity hot air curing systems.
PRODUCTION CRITERIA
Recommended Material & Substrate Printing Guidelines
Substrate Type | Grammage Range | Anilox LPI Limit | Optimal Speed Range |
|---|---|---|---|
Single-Side PE Coated Board | 150 – 320 gsm | 350 – 600 LPI | 300 – 400 m/min |
Double-Side PE Coated Board | 170 – 350 gsm | 300 – 500 LPI | 250 – 350 m/min |
PLA Biodegradable Coated Paper | 180 – 300 gsm | 300 – 550 LPI | 280 – 380 m/min |
RECOMMENDED PLATFORMS
Recommended Flexo Printers for This Application
FLAGSHIP CHOICE (Gearless High Speed)
Master Series 8 Color Full Servo Gearless CI Flexo Press for Premium Paper Packaging Production
Our state-of-the-art full-servo gearless press. Designed with independent drive technology, it ensures maximum stability and lightning-fast sleeve changeovers on thick cup board.
Sleeve System: Rapid job change < 30 mins
Register Tolerance: Dynamic ±0.08 mm
Production Speed: Smooth up to 500 m/min
PRACTICAL CHOICE (Economic Heavy Duty)
King Series 6 Color Full Servo Gearless CI Flexographic Printing Machine for Flexible Films
Highly robust gear-driven CI design. Features heavy-duty mechanical transmission built specifically for constant long-run high grammage paper printing with extreme cost-effectiveness.
Transmission: High-Precision Heavy Helical Gear
Register Tolerance: ±0.15 mm
Production Speed: Stable runs up to 350 m/min
Global Support & Technical Consultation
• Custom Design: LISHG's dedicated SJTU Yunhan Jiaolong full-stack team assists you in integrating custom inline slitting or heavy-duty turret rewinding configurations.
• Print Trial & Proofing: You are welcome to mail your specific single/double-side PE cup stock directly to our plant for professional high-speed proofing and registration testing.
